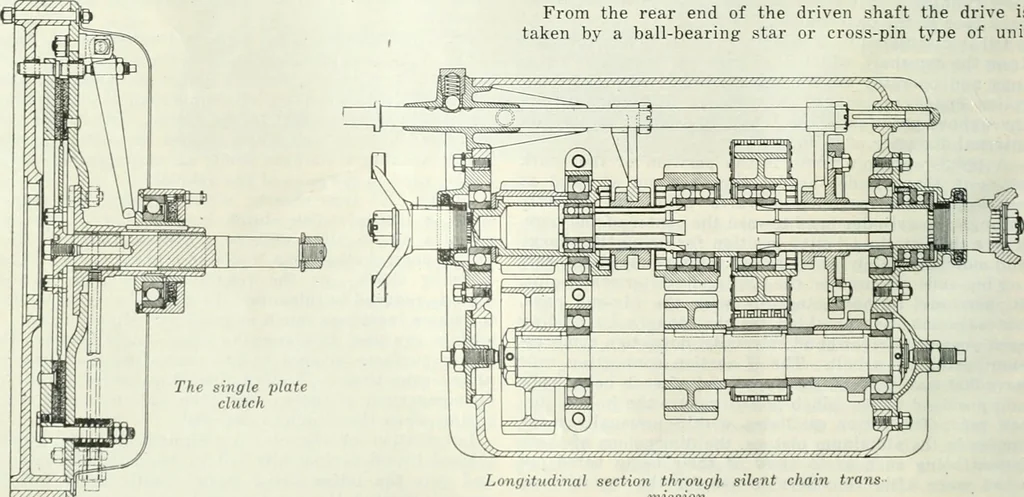

. Ball bearings are used throughout, includingdouble rows for the pilot bearing and for the drivensprockets, the latter, of course, rotating idly when theyare not taking the drive. The chains in each case are2% in. wide. The shafts have 5%-in. centers and lie inthe same horizontal plane; the… … L-J::;;:» Longitudinal section through silent chain transmission April 7, 1921 AUTOMOTIVE INDUSTRIESTHE AUTOMOBILE 745 versal joint to the tubular propeller shaft, which has asimilar type of joint at the rear connecting it to theworm shaft below the rear axle. Sliding movement ispermitted at both…
