Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 365

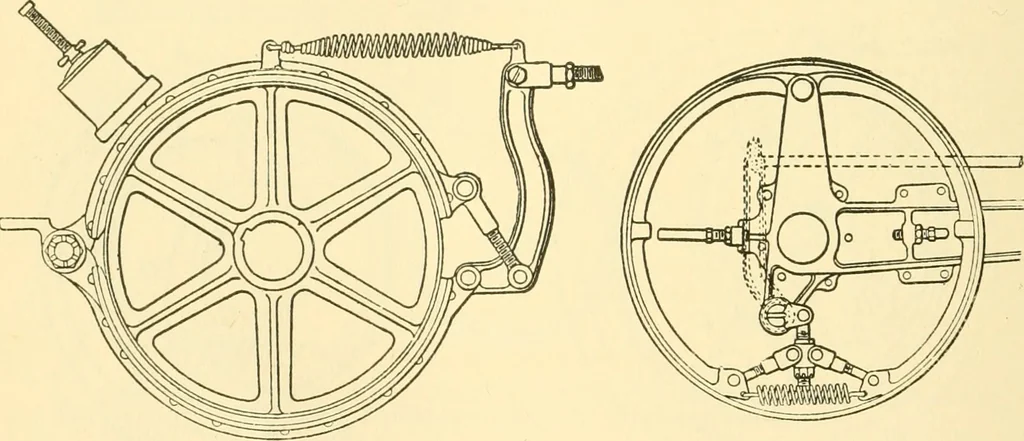

e drum. The shoes are pivoted at one How is an expanding brake constructed? This type of brake, as shown in fig. 243, usually 338 A UDELS ANSWERS end, and so arranged that in operation they expand andpress against the drum. They are commonly held out ofcontact by a spring. Ques. What device is… … Figs. 246 and 247 The Locomobile brakes. The running brake consistsof a contracting band brake, the pulley of which is located on the differentialshaft at the right of the bronze gear case, and to which the band is firmlysecured. This brake is of the double acting type, 12 inches in diameter and4…
Automobiles
