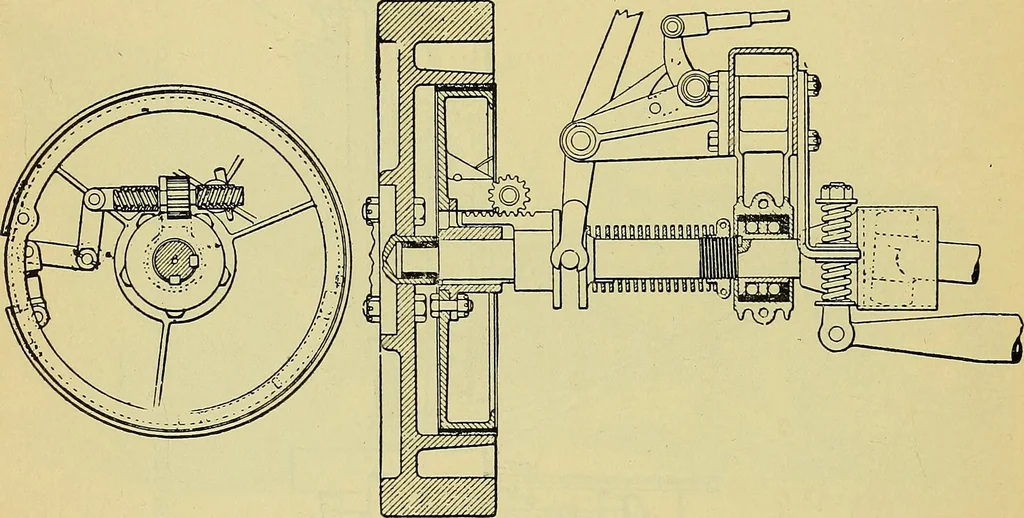

sistance is sufficient to stopthe car within a very small distance. The Transmission.—The transmission gear, hung just for-ward of the rear axle, is of the sliding gear type, giving threeforward speeds and one reverse As shown in the accompany-ing sectional diagram, it consists of three shafts: (I)… … Fig. 292.—End View and Cress Section of the Packard Expanding- BandClutch. single spur gear at its inner end and bored to serve as a bearingfor the drive shaft; (3) the second motion shaft, to which are.keyed three spur gears, two of them of diameters suitable tomesh consecutively with the sliding…
