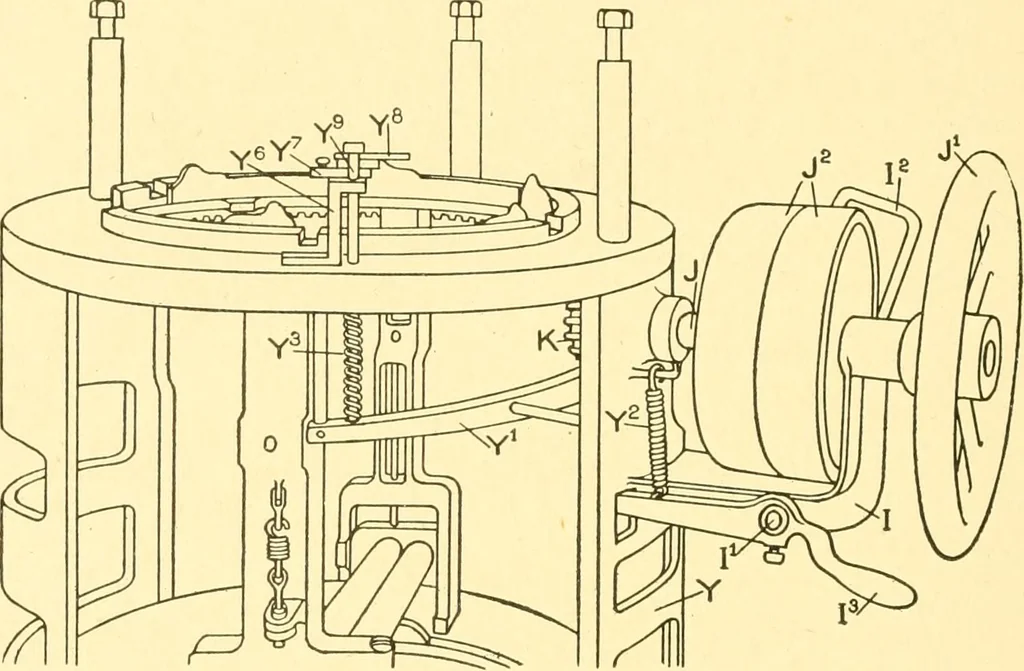

shifts the beh to the loosepulley. Hole and Bunch Detector. Fastened on top of the cam ring,directly over the end of trip Y (Fig. 51), is the needle protectorbracket Y^, provided with latch Y and. finger Y\ Through the topof the bracket is a bearing which is also carried through the bedplate.In… … Flg. 51. Top Frame and Driving. tion it rests on top of trip Y. The finger is fastened to the latch sothat when its inner end stands between the paths of the ends of thecylinder and dial needles, just beyond the point where the stitchesare formed, the channel in the plunger can be rested on the…
