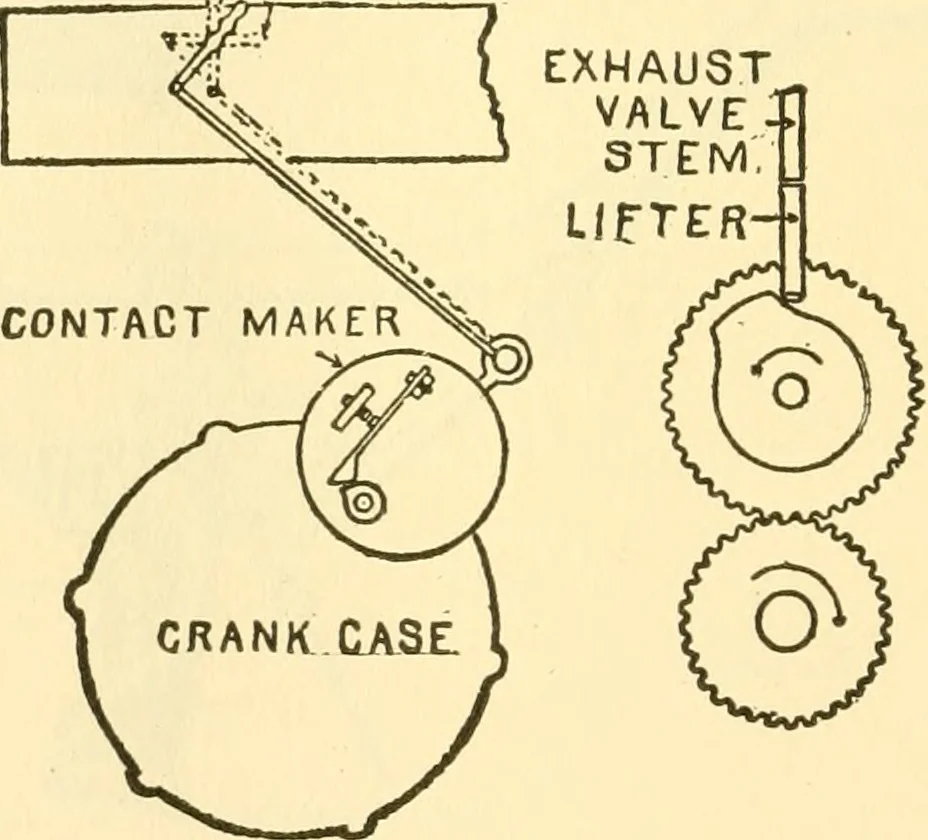

the correct move-ments are clearly marked either with lines on the ends of thegears or prick punch points, which in any case should be madeto register when setting up the motor. Under these conditionsthe timing of the engine should be a comparatively easy task. If for any reason it be desired to… … Fig. 277.—Timing motor cycle valves. After removing contact makerand gear case covers and the large gear, 1, the crank is placed on the upperdead center, and 2, the large gear and cam replaced, the large gear meshingwith its driver in such a way that the cam is just breaking away from the Hfteras…
