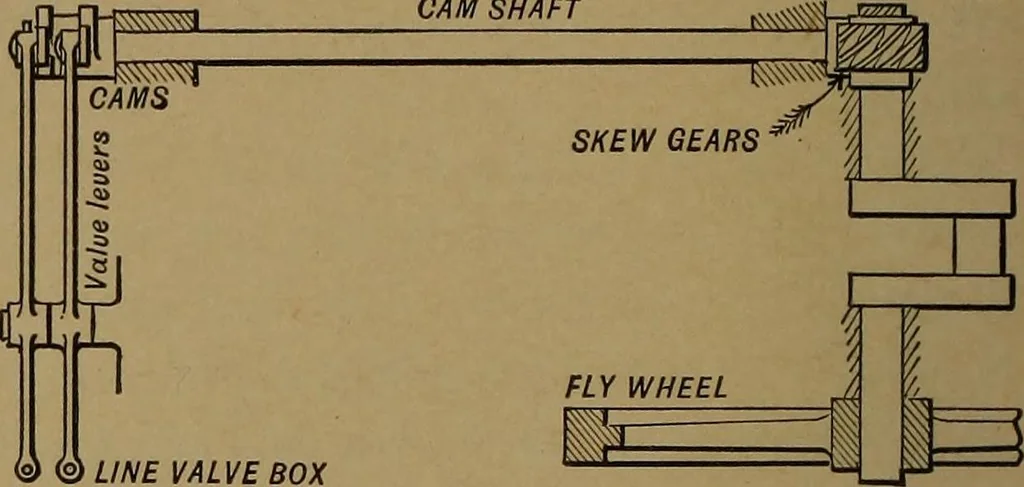

by the operating levers, as shown inFig. 23. Where spur-gearing (Fig. 23a) is used thecam-shaft is mounted in bearings parallel to the crank-shaft, the cams then acting on the horizontal rodworking in compression, which opens the valves. Various other arrangements for reducing the motionare also… … iw» <s> <2> line val ve box Fig. 23. In the two-cycle engine this valve or valves areoperated each revolution of the crank-shaft by eccen-tric or cams actuated directly from the crank-shaft.
