Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles (1906)

Homans, James E. (James Edward), b. 1865 · New York, T. Audel & Company · leaf 180

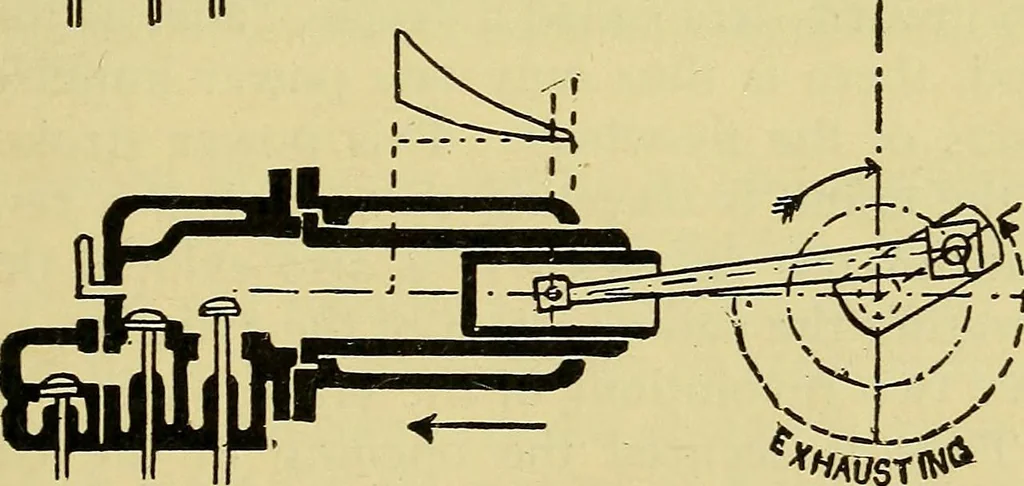

An illustration from Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles, 1906, leaf 180 — % K … Fig. 132.—The Cycle of an Otto, or Four-Part Cycle, Gas Engine. only, and is of the trunk pattern, having the swinging con-necting rod pivoted within. The action of the piston and drivinggear is, thus, entirely positive and automatic, in the sense thatthere is no pressure whatever outside of the…
