Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 449

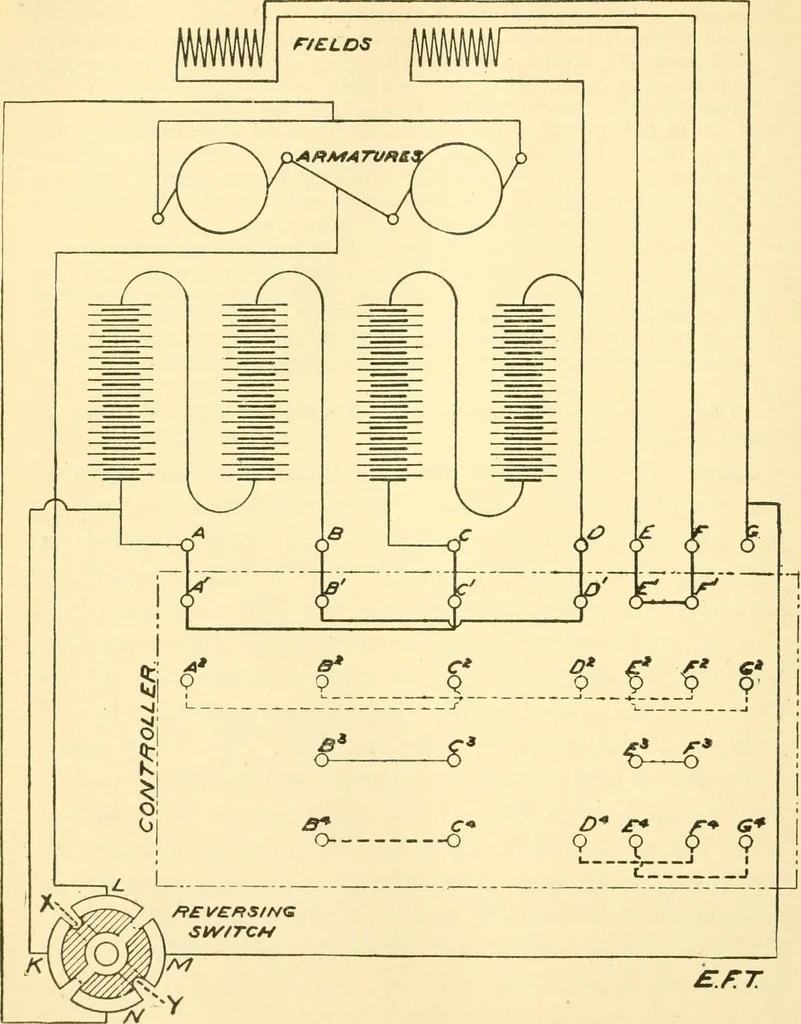

eed, the points B and C are brought intocontact with B^ and C^^, and D, E, F, G, with D*, E^, F*,G*, which means that the batteries are in series and thefields in multiple. The connections between the battery, the armature brushes,and the motor fields, are made as indicated through the… … Fig. 317.—Diagram plan of the several parts of an electric vehicle drivingcircuit. The field windings and armatures are shown projected, the properwiring connections being indicated. The periphery of the controller is laidout within the broken line rectangle, the contacts and connections through…
