Electricians' operating and testing manual; a hand book for men in charge of electrical apparatus, repair men, trouble men, lamp trimmers, and electricians generally (1916)
Horstmann, Henry Charles, Tousley, Victor Hugo, 1875- joint author · Chicago, F.J. Drake & co · leaf 125

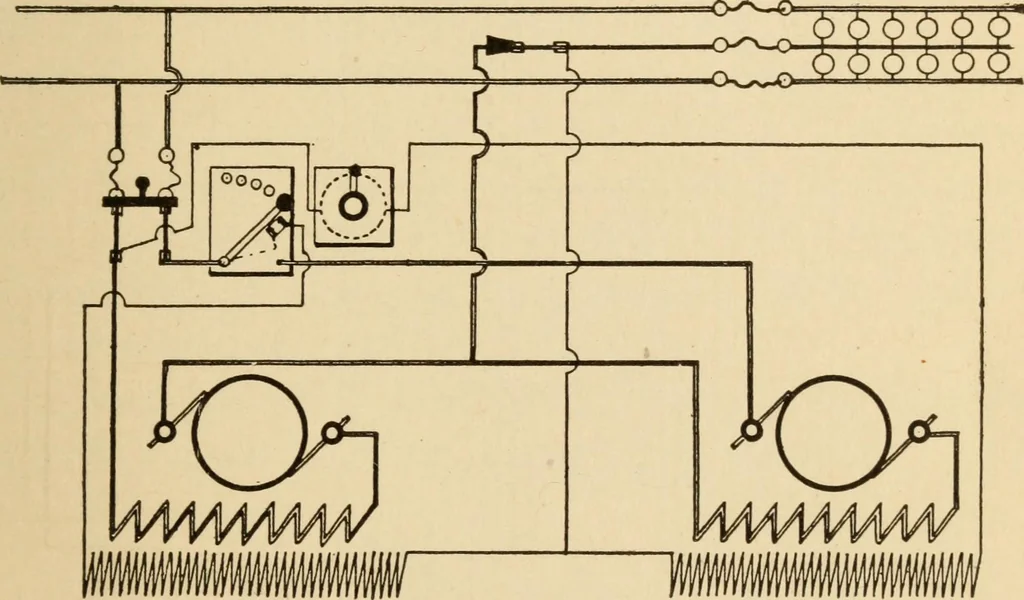

namo Operation—Direct Current 121 All full voltage apparatus is connected to the + ^^^— buses, and the half voltage equally distributedfrom the neutral and the two outside wires, so thatthe load will always be balanced as near as possible.The balancing coils B have the appearance of trans-formers,… … Figure 81 to see that the load is not unbalanced beyond their ca-pacity. As more or less of the load may come on eitherside of the dynamo the compound winding is dividedbetween both sides of the generator, which makes itnecessary to run two equalizer wires, as shown. Anammeter for each dynamo lead…
Electrical engineering · Electric testing
