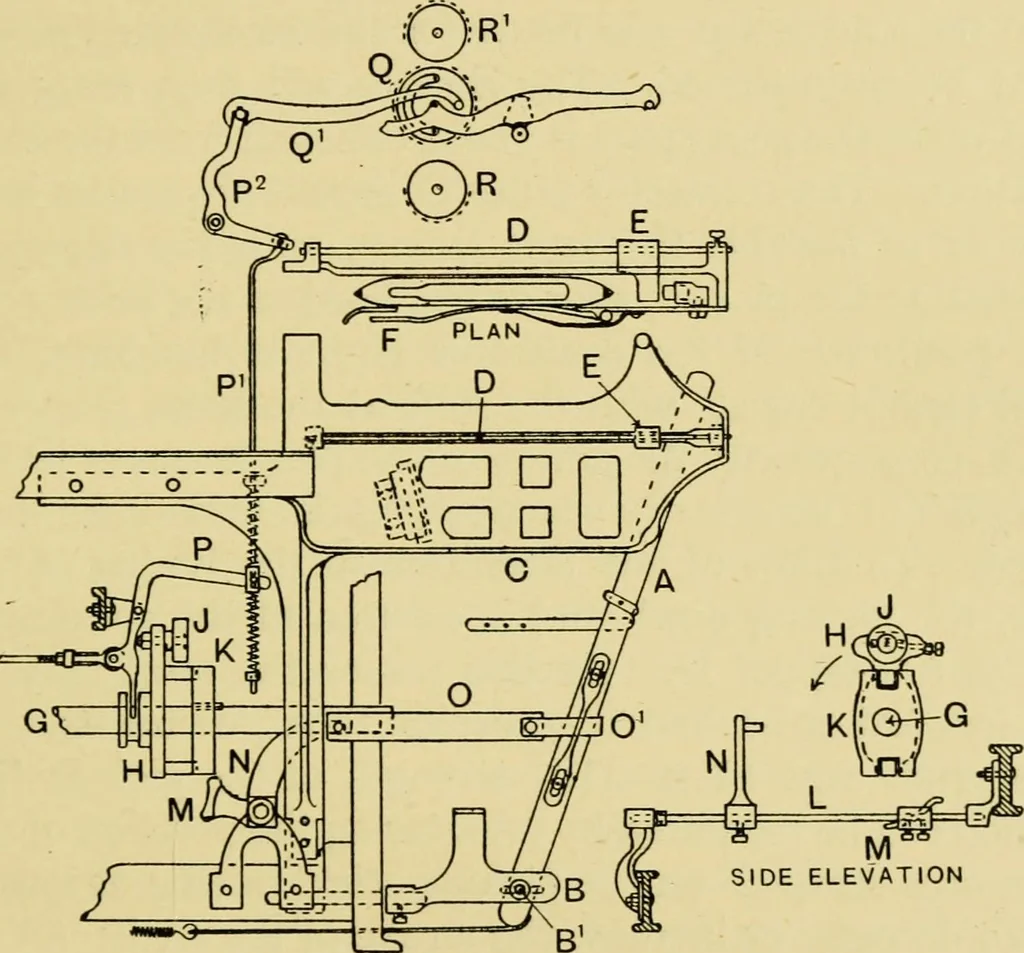

lo per cent, in speedan easy matter. The chief feature of this improvementconsists in the substitution of a clamp bracket in place CONSTRUCTION OF UNDER-PICK MOTION 121 of the lever N. This bracket holds the picking stick,which is now inside the loom frame. The picker beingconnected by means of a… … FRONT ELEVATION Fig. 33. taken place. This alteration in the picking mechanismenables a smart blow and a quicker passage to be im-parted to the shuttle, a feature of all whip pick motions,which is not attended by any appreciable vibration orincreased wear in the mechanism. Timing of the Pick.—The…
