Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 62

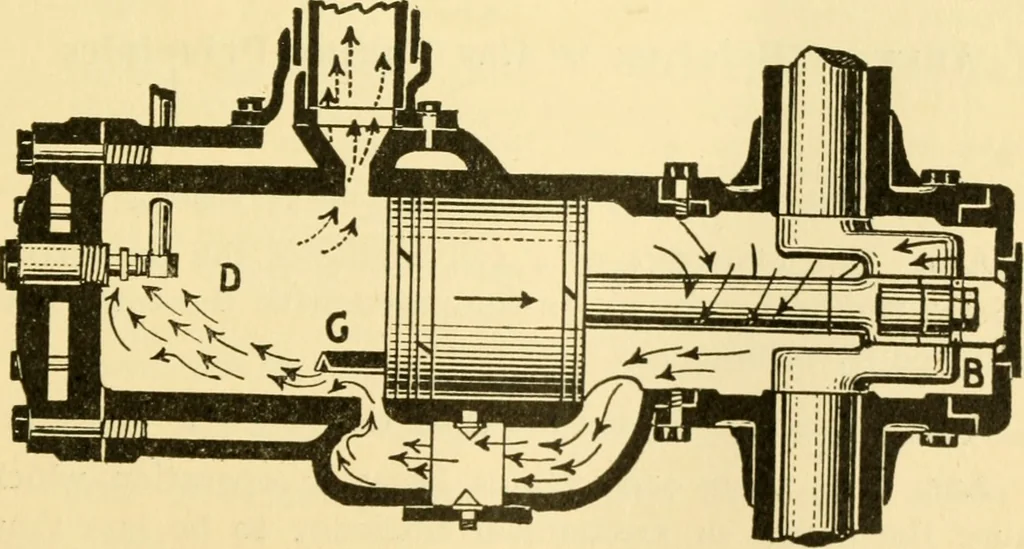

Fig. 9.—The two cycle engine: first part of second stroke. The outwardstroke of the piston uncovers the exhaust port, thus releasing the burnt gasesin the cyhnder, and simultaneously compressing the previously admitted chargein the crank case. … Fig. 10.—The two cycle engine: end of the second or outward stroke.The gases compressed in the crank case are admitted to the cylinder space, Dthrough the open inlet port, and sometimes past the screen or deflector, C.The passage between the cylinder and the crank case is controlled by a butter-fly…
Automobiles
