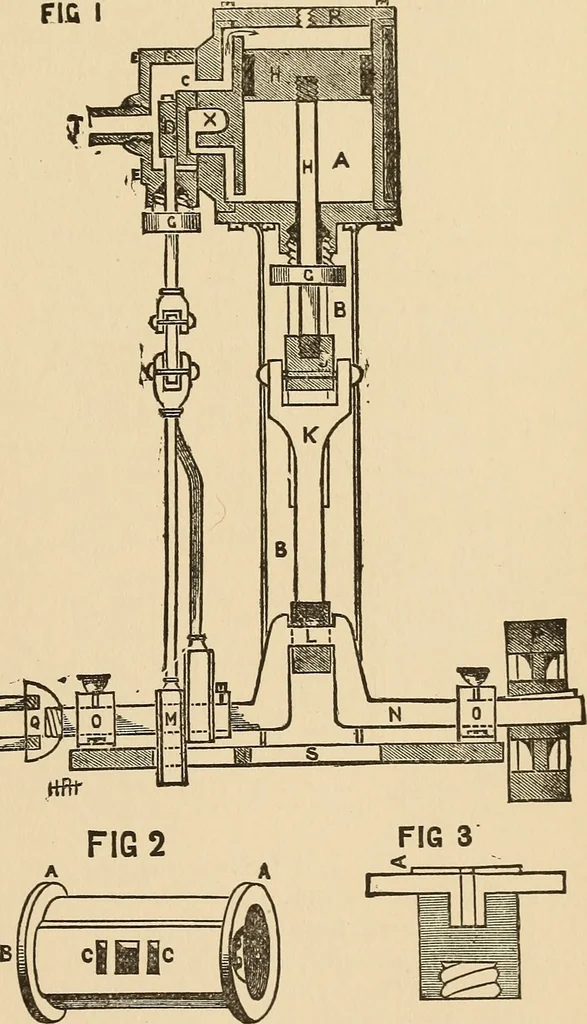

shed it off with emery. Nowtake the standards b (Fig. i), and finish them up with a file in the same way, andbe careful that the insides forming the guides for cross-heads are quite true. Wecan now make the lagging for cylinder. Get a piece of mahogany the lengthof the outside circumference of… … I40 THE BOYS OWN MODEL LAUNCH ENGINE, the cylinder, and you can fasten it on by a couple of brass bands, screwing theends down near the slide-valve case. We will next tackle the steam-ports in the cylinder b b (Fig. 2). They aresimply two holes drilled side by side until they reach the openings c c…
