Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles (1906)
Homans, James E. (James Edward), b. 1865 · New York, T. Audel & Company · leaf 336

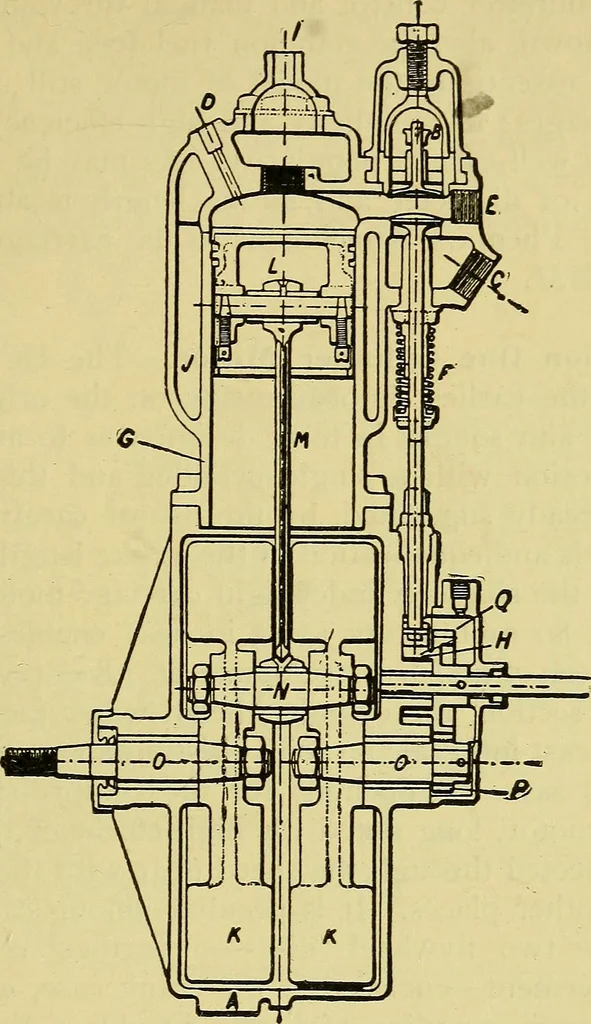

cylinder heads and valve chambers being separablefrom the cylinders, and the crank chamber, consisting of an upperand a lower member, bolted together on flanges, as shown. ThePhenix, or modified Maybach, carburetter, already described,was used with this engine, and the Panhard-Levassor clutch… … Fig. 239.—Section of the De Dion & Bouton Water-jacketed Carriage Motor.Parts are as follows: A, crank case formed by two cylindrical piecesbolted together; B, the inlet valve for the fuel mixture from the carbu-retter; C, the exhaust valve, held closed by a helical spring, F, and.opened by the…
Automobiles
