Augsburg, De Resco Leo, b. 1859 · Boston, New York, Educational Pub. Co · leaf 112

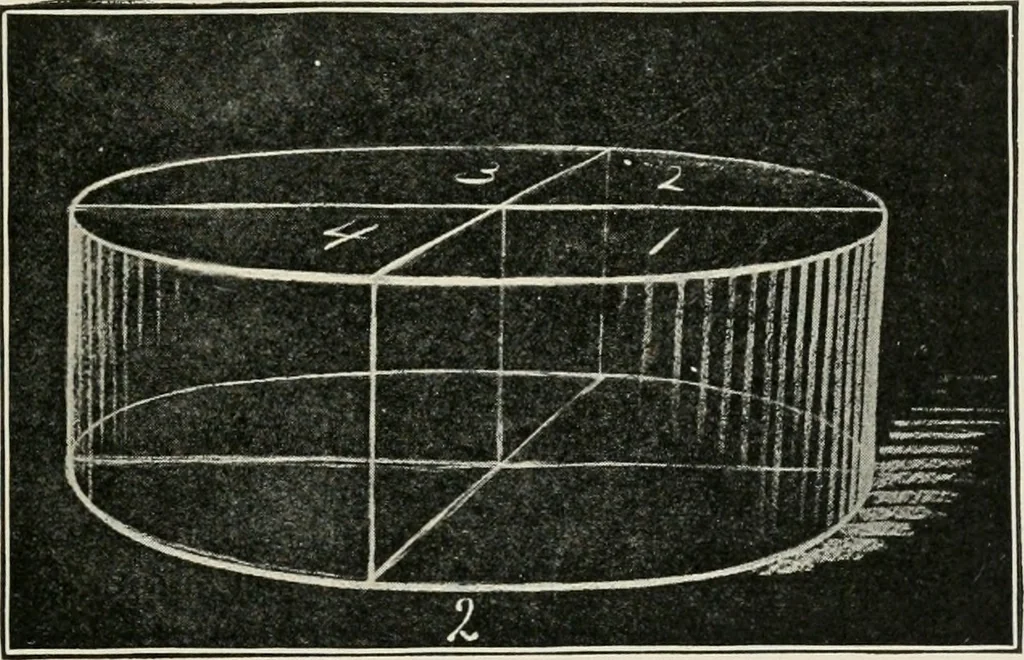

d 2. 2. Draw Fig. 1 and remove parts 1 and 3. 3. Draw Fig. 1 and remove parts 2 and 4. 4. Draw Fig. 1 and remove parts 1, 2 and 4. When drmoing a part it is often necessary to sketch the wholein order to draw the part correctly. In the problems given below consider Fig. 1 as being hollow,like a… … Fig. 2 is a vertical cylinder drawn below and at the left of theeye and divided into four equal parts by horizontal and horizontalreceding lines. Remove these parts as indicated in the following problems.Do not use the center of vision. 8. Draw Fig. 2 and remove part 1. 9. Remove part 1 and place…
Drawing
