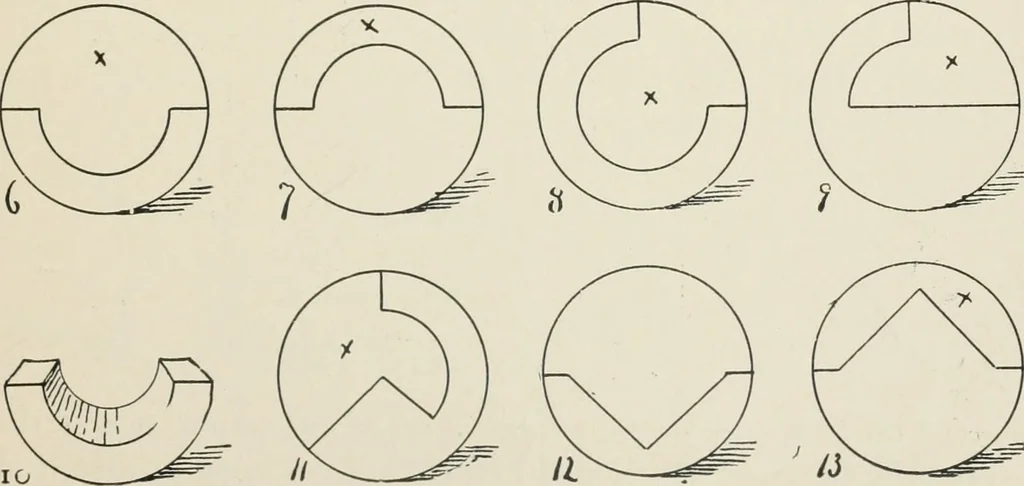

parts as indicated in the following exercises : When the draioingis based on the honzonlcd receding cijlinder, the center of vision maybe used. 25. Draw part 1 below and at the right of the eye. 26. Draw part 1 below and at the left of the eye. Removethe front face. 27. Draw part 1 l)elow the eye.… … 112 AUGSBURGS DRAWING. 30. Draw part 2 l)elow and at the left of the eye. Removethe curved face. Figs. 6-13 represent the front face of cylinders drawn directlyin front of the eye. On each face is marked a problem ; the partmarked X on each cylinder is to be removed as follows : 31. Draw Fig. 6…
