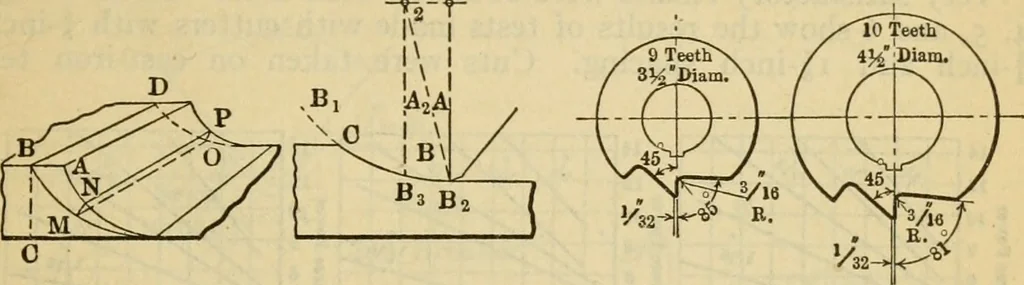

e time. Thetooth A B sweeps through the path B C. When the point B hasreached the position Bi, a new tooth starts cutting. By this time Ohas advanced to position O2, and the new tooth A2 B2 is not yet in avertical position, when the point B2 touches the work. When the ACTION OF CUTTER TOOTH 143… … Fig. I — Chip As- Fig. 2.—Actionsumed to be pro- of Millingduced by Cutter Cutterwithout distortion Fig. 3. — Coarse pitchMilling Cutter begins to remove a chip. This may be assumed to take place in theposition Bz, the tooth simply gliding over the work from B2 to Bz.This action must necessarily be…
