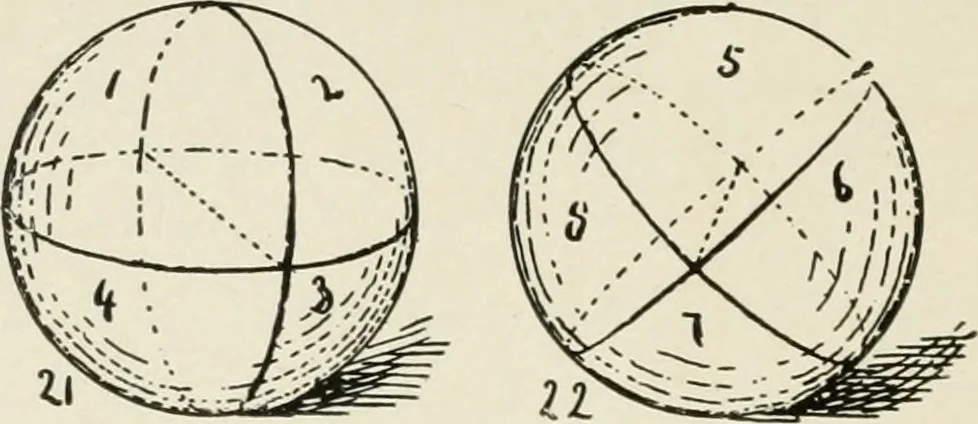

nder below the eye. 49. Draw scroll 19 in the position of Fig. 17. 50. Draw scroll 20 as a receding cylinder. 51. Draw scroll 20 at the left of the eye. 114 AUGSBURGS DRAWING. We study the cylinder in certain set positions, easy to under-stand, easy to represent, and mechanical in construction,… … Figs. 21 and 22 are two spheres, each divided into four equalparts. Use for a model an apple with one quarter removed. 52. Remove part 1. 53. Remove part 2. 54. Remove parts 1 and 2. 55. Remove parts 3 and 4. 56. Draw part 1. 57. Draw part 1 below and at the left of the eye. 58. Draw part 2. 59.…
