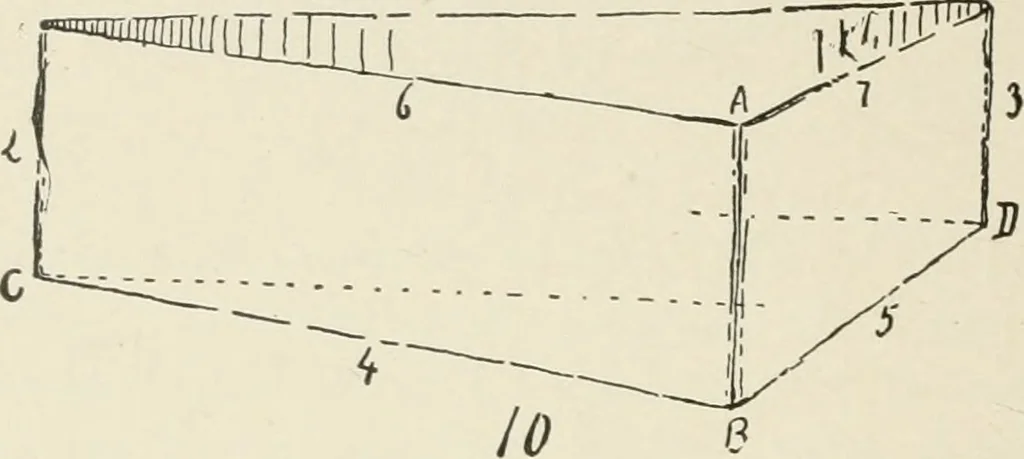

atwhen the top is on a level with the eye, it is a horizontal line.Fig. 5. (2) That when the top is below the level of the eye,it can be seen, and the farther it is below the eye, the wider itis drawn. Figs. 6 and 7. (3) That the bottom is drawn widerthan the top in Figs. 5, 6, and 7 because it is… … The vertical ^^rism is drawn the same as the ])()X. (See ExactDruwing, Chapter VI.) This is done in general, as follows : 1. Take the nearest vertical line. 2. Find the remaining vertical lines. 3. Find the corners. 4. Finish. Stated more specifically, the process is as follows : 1. Place the…
