Notes on practical mechanical drawing, written for the use of the students in general engineering drawing in the University of Illinois (1907)
Wilson, Victor Tyson, 1864- [from old catalog] · State College, Pa., The author · leaf 11

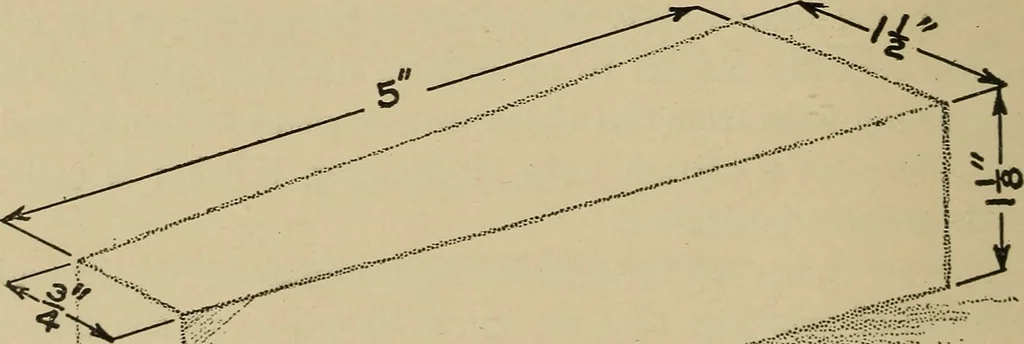

stakable drawingshould be made of it. The test of a good working drawinglies in the fact that the workman can make nothing out ofthe facts contained thereon than what was intended by thedraftsman. The entire meaning should be clear beyond theshadow of a doubt. To choose the number of views that… … Straight Line Drawing 3 2. Exercise No. 1. This a perspective sketch of a form to be made by aworkman in wood or metal. From this sketch constructa plan, side view and two end views, and put on them thedimensions shown. The sketch shows just the dimensionsrequired and their place, and also the…
Mechanical drawing
