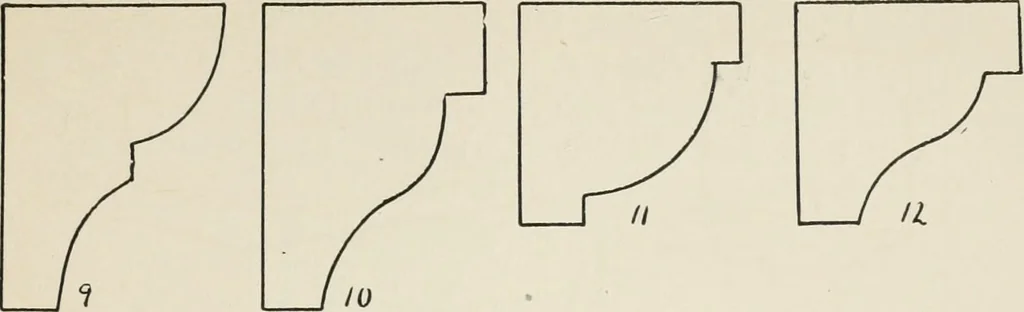

Do not aim at exactness of proportion, but rather to gain theprinciple and to represent the block in the position called for. Donot require these problems to be drawn withoitt a model for the pupilto look at. 23. Draw block 7. 24. Draw block 7 with edge 3 toward you. 25. Draw block 7 with edge 2… … 30. Draw block 8 with face A down and edge 4 toward you. 31. Draw block 8 with edge 5 vertical and toward you. 32. Draw block 8 with edge 1 toward you and face A down. Figs. 9-12 represent pieces of common moulding such as areused by most carpenters and builders. These pieces of mouldingmake…
