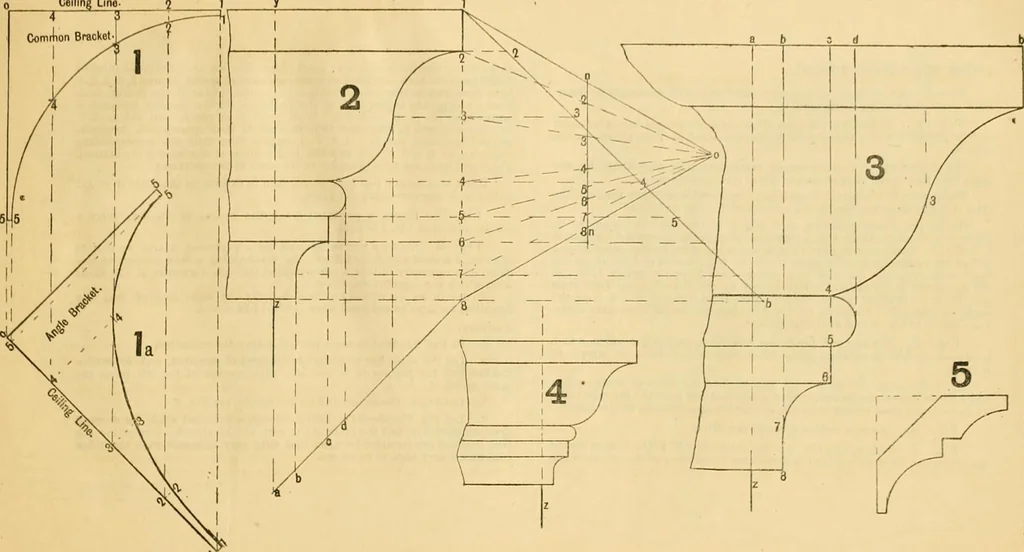

bracket for the corner of a hexagon, determine thecommon brackets. 2. Let Fig. 5 represent the angle bracket for an internal angle of 30,draw a corresponding common bracket. 3. Show the necessary lines for reducing the projections of Fig. 2, so thatthe reduced size may be Fig. 4. 4. Show how far… … ANGLE AND RAKING MOULDS. When moulds meet at other than a right angle it is necessary to deter-mine the corresponding angle mould. Fig. 1. Represents the plan of an angle requiring a bar to intersectwith a moulded head; the mould being the same as that shown on thestile A. The present case is a…
