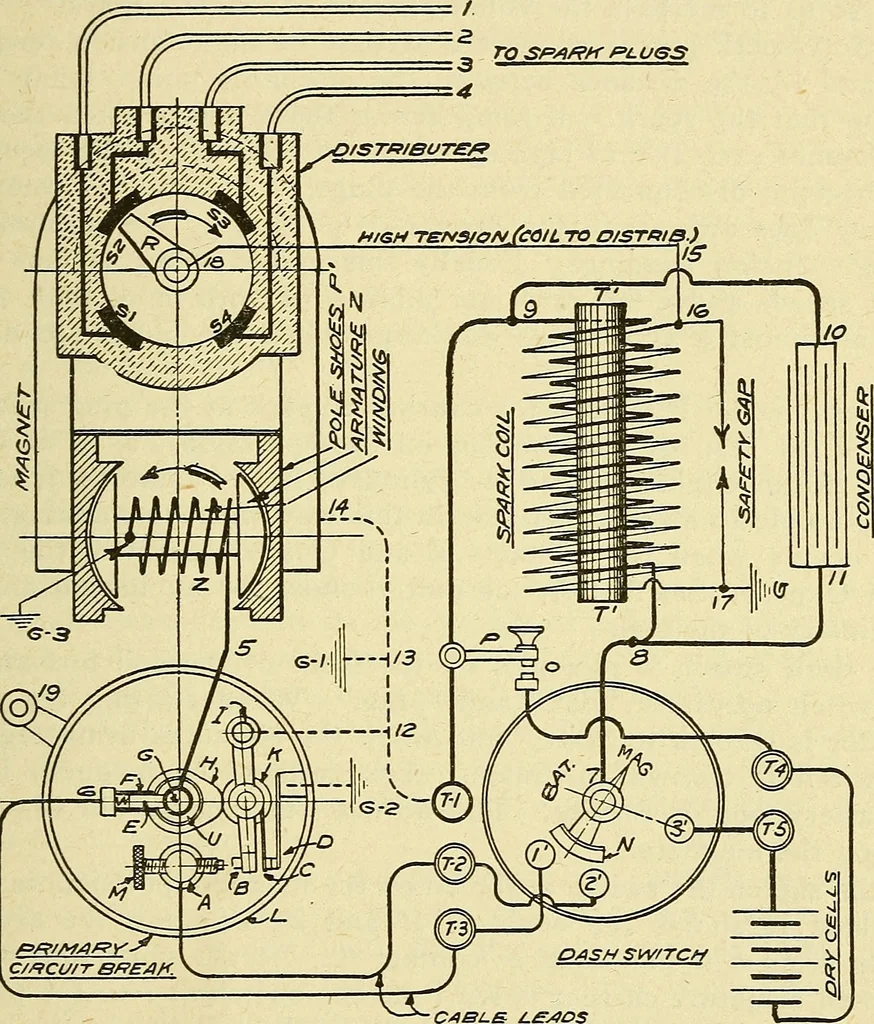

er 19, by which thespark may be advanced or retarded. Rocking the housing causes thecam H to come into contact, earlier or later, with the roller, thus AUTOMOBILE DRIVING 163 causing the spark to occur earlier or later in the revolution. Thebattery breaker C-D is grounded at G-2. The spark coil,… … CABL£L£^DS Fig. 2.—Typical Transformer Type Magneto. is connected with the box by T-4 and T-5, usually marked Bat.on the instrument. The terminal T-1, marked 3 on the instrument,is grounded to the frame of the machine, while cables from T-2 andT-3, marked 2 and A, respectively on the instrument,…
