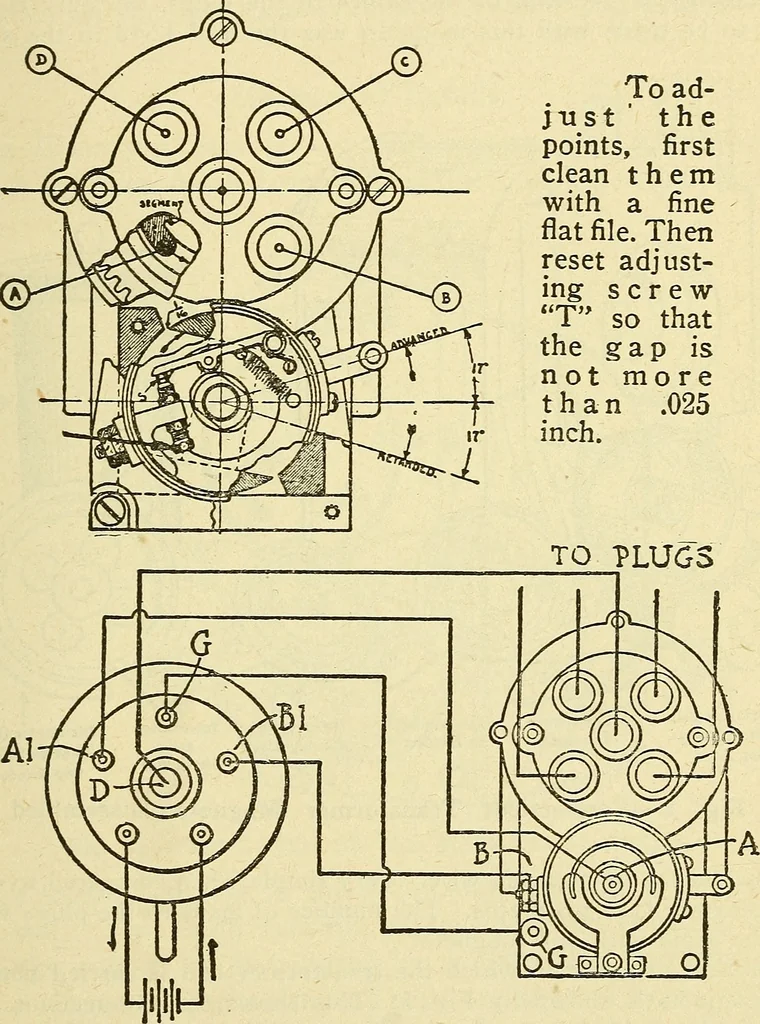

errupter at R through wire 12. This interrupter consistedof two metal blades G and H, spring tempered, mounted and insu-lated from each other on the block 19. Two platinum contact pointsI and J made normal contact with one another, grounding the arma-ture current through 15 at G-3, and from here… … BATTEKY Fig. 4.—Splitdorf Transformer Type Magneto and Circuit. Trans-former Coil at the Left of Circuit Diagram. Courtesy of The Auto-mobile. I i68 AUTOMOBILE DRIVING A cam E made of insulating material intermittently passed betweenthe contact points at G and H, breaking the primary circuit at…
