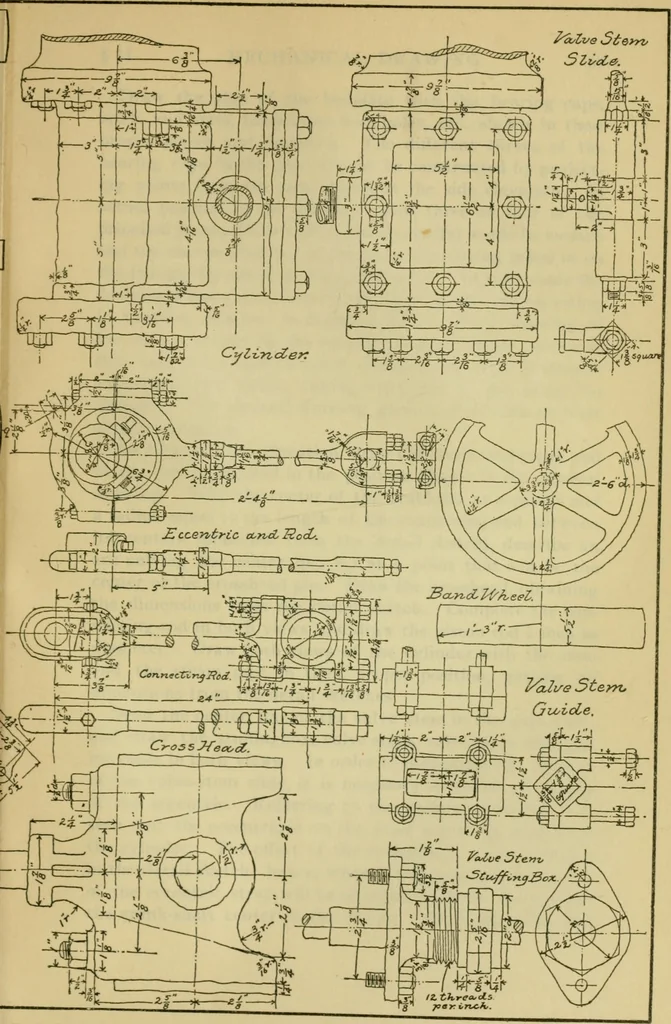

JU^E 25.1893. jT notice cf copvT:g-t, se … ediately following the title page. J-OHJvsjyriTj^. CLA ss jsr^ Asag. § 14 MECHANICAL DRAWING 85 Draw the plan of the bedplate with the bearing caps,studs and nuts, foundation-bolt holes, etc. shown in theirproper places and positions. The different curves of thebearing caps in the plan should be…
