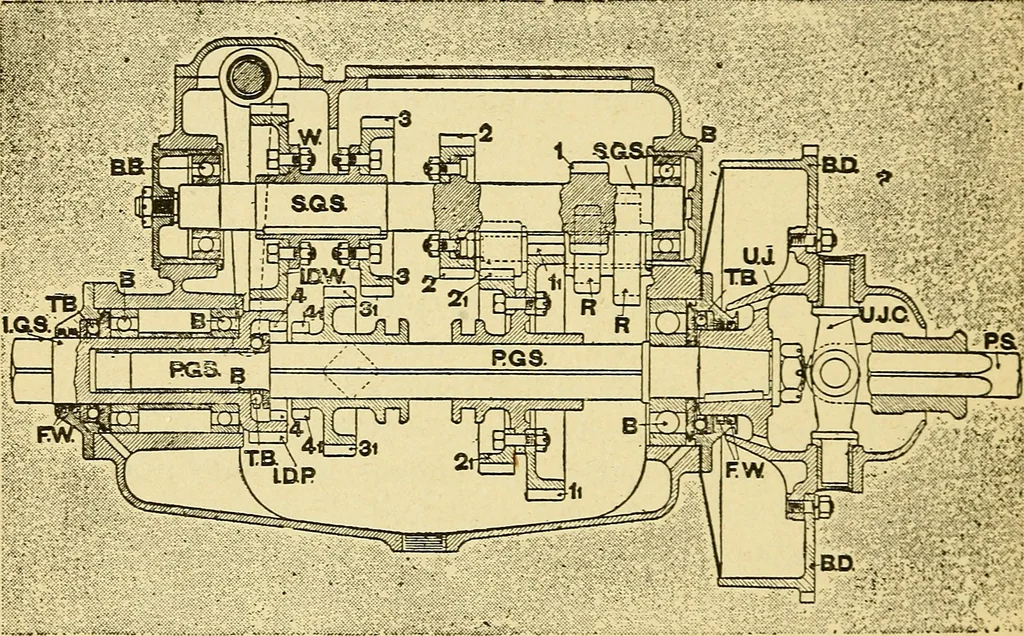

t atSGS. Sometimes SGS is known as the lay shaft. The pri- 190 AUTOMOBILE DRIVING mary gear shaft is not directly connected to the engine orthe clutch, but at the left-hand end in our illustration it willbe seen that it is surrounded by the sleeve IGS, which wemay term the initial gear sleeve. This… … FIG. 5- -VERTICAI- SECTION OF TALBOT GEAR BOX, IGS, Initial gear sleeve.I DP, Intermediate driving pinion.I D W, Intermediate driven wheel.S G S, Secondary gear shaft. 1 and li, Driving and driven wheels of first speed 2 and 2i, Driving and driven wheels of second speed 3 and 3i, Driving and driven…
