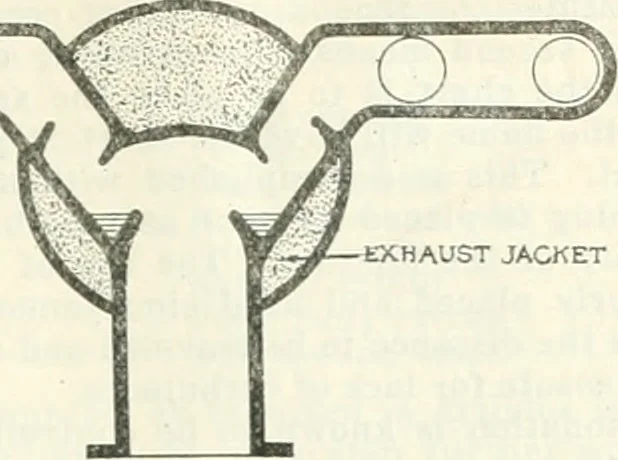

eveloped the Stewart vapor-izing system shown in Fig. 10. In this the liquid streamissuing from the carbureter is projected into an exhaustheated dome with internal and external ribs which pro-vide considerable surface on which the fuel is vaporized.The vapor then issues into the manifold in the… … EXHAUST JACKET Other developments along similar lines are seen in themanifolds developed by Nelson, Fig. 11, Scarratt, Fig. 12,and Dorris, Fig. 13. It will be seen by reference to Figs.11 and 12 that the liquid fuel in both cases is thrownagainst exhaust heated surfaces. Portions of the fuelnot…
