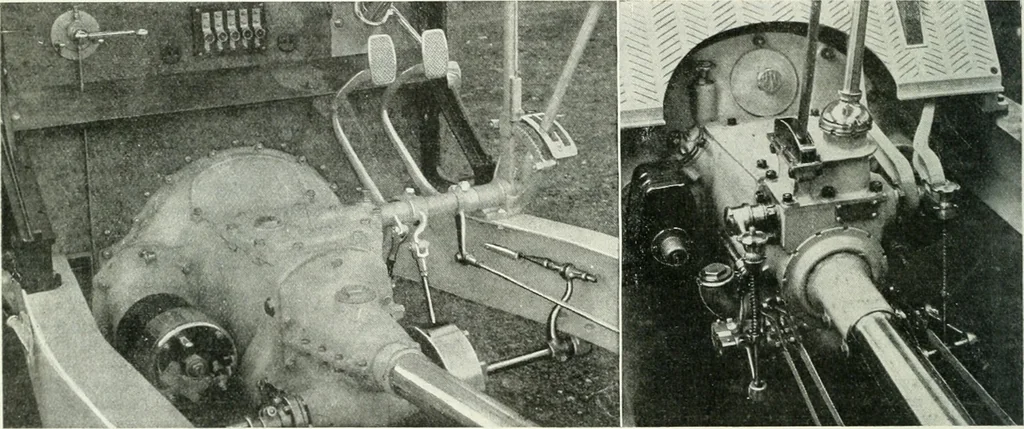

g four-wheel brakes there is a large degree of uniform-ity in size, the drums varying in diameter from 15 to 16 in.and the shoes having a width of from 2 to 2% in. on theDelage, Darracq, Hispano-Suiza, Metallurgique, Excelsior,Bellanger, and Piccard-Pictet cars. In all cases the brakesare internal… … Fig. 18—Hispano-Suiza brake connections. Fig. 19—Metallurgique brake adjustment. radiator support. On the latest Darracq the brake cam-shaft is mounted on the frame member, independently ofthe radiator support. The Perrot System Advantages claimed for the Perrot system (Delage, Dar-racq,…
