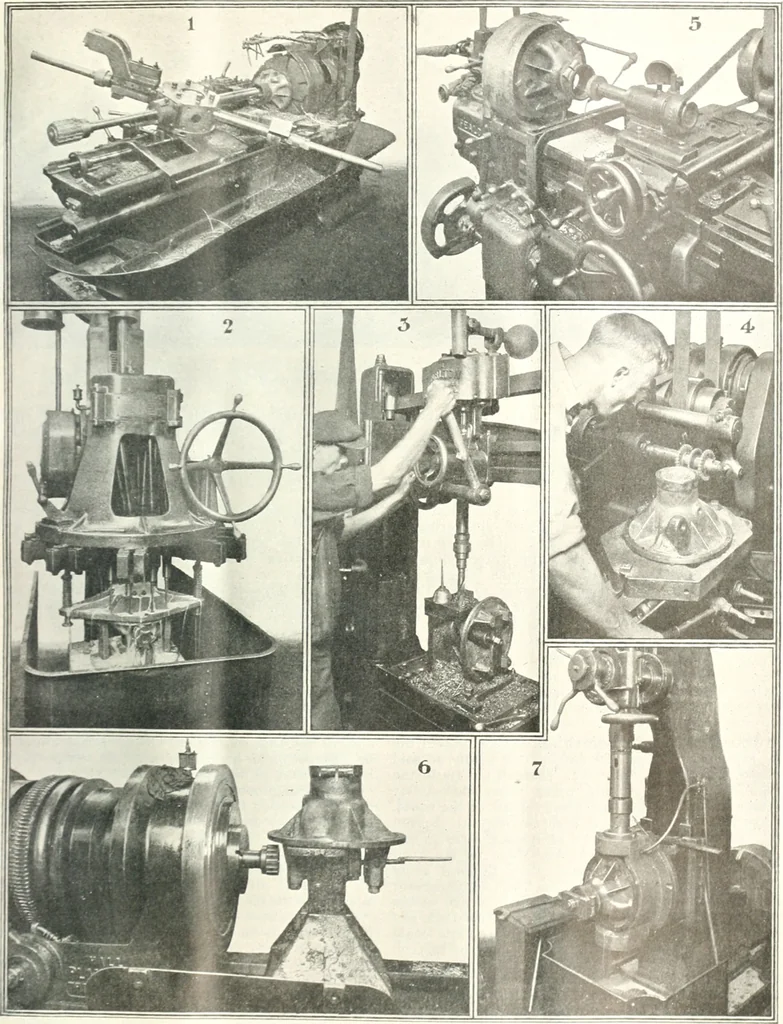

pera-tion on them is a Foote-Burt boring mill which boresout for the differential. This work is located from thefinish ground bore and against the flange. As shownin Fig. 7, there is an indexing fixture employed inthis work. The fixture is reversible, permitting eachside to be bored. A feature… … 1—^trst operation on Hudaon differential carrier. Boring, facing and turning on CislioH No. 5 machine.2—Baush multiple spindle drill on flange and boss holes for Hudson differential carrier. ^—Drilling1 m-arid ^A ^n. pipe slug holes on Carlton drill with Magic chuck. A^Slotting and end milling the…
