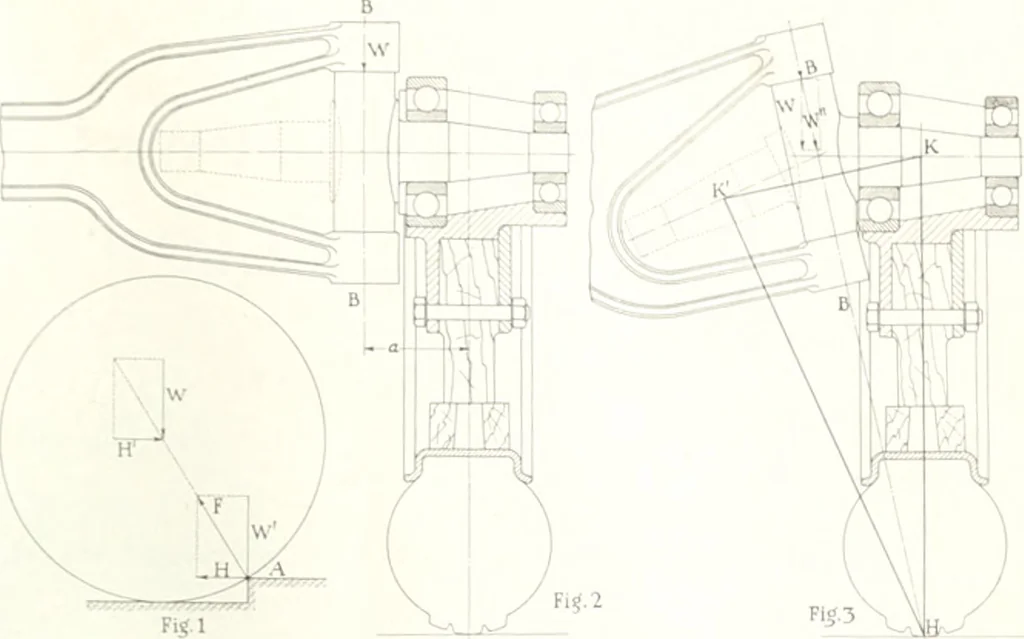

hefront wheel brakes are locked through anangle of 90 deg., let us say from extremeright to extreme left, we would have todo the work. W = 600 X 21:; X ^ = 2355 in. lb. Inasmuch as there are two wheels in contact with theroad, the driver has to do twice as much work, namelv,4710 in. lb. With a… … Diagrams showing stresses invohed i)i steering systems tvith vertical and with transrersch/ raked pivots to maneuver under such conditions. To explain the reasonfor this, let us assume that the distance a, Fig. 2, is equalto 2^2 in. and the contact area in a radial direction takenfrom the center of…
