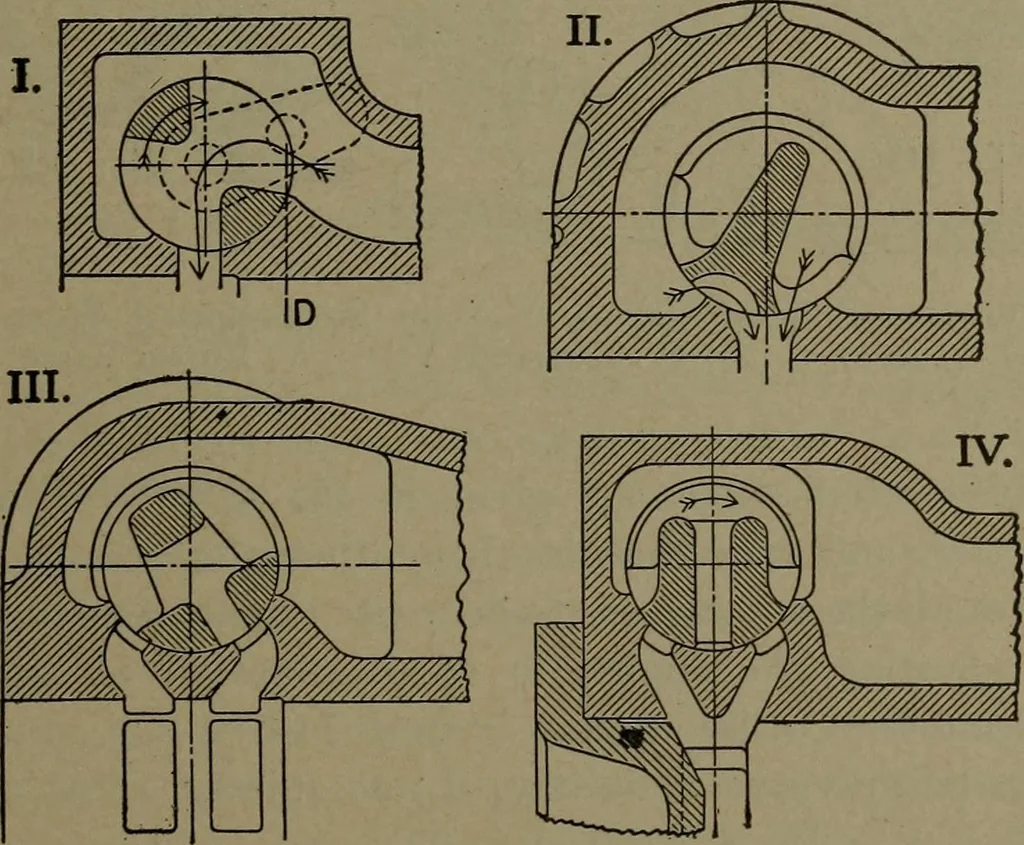

y single-function valve isbalanced or left free to move easily by the substantial equalization ofpressure all around it. For the exhaust valve especially there is adecided gain in a marked distortion from harmonic motion. Referringto Fig. 272 we see that the period of rest and of slow movement of… … Fig. 276. — Various Steam Valves: I. Passage through Valve; II. Murray Valve;III. Brown Valve; IV. Reynolds Valve. (h) Various Forms of the Corliss Valve. — The sections inFigs. 276 and 277, with Fig. 265, illustrate the following points: 1. If the steam valve opens by an inward motion across the…
