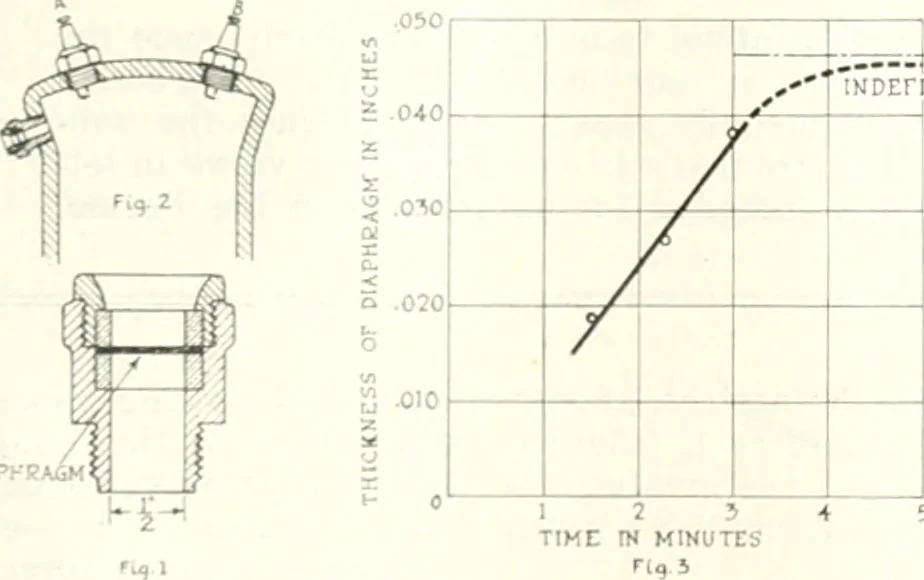

ckness of diaphragm is noted. Changes are thenmade to produce the conditions under which a comparisonis desired and again the time required to shear a disk ofthe same thickne.ss is noted. An alternative method of •Tcchnira! Noti^ No. 101. I.ijni«l by the Natlon.il AdvlHorv Com-mittee for… … TIME IN MINUTESri^ 5 Diayram showing type of diaphragm pliuj andits location in relation to the spark plugs in aLiberty engine cylinder. The curve shows thatthe time required for failure of the diaphragmis, lip to a certain point, directly proportional tothe thickneis at thr dia/ihrngm comparison…
