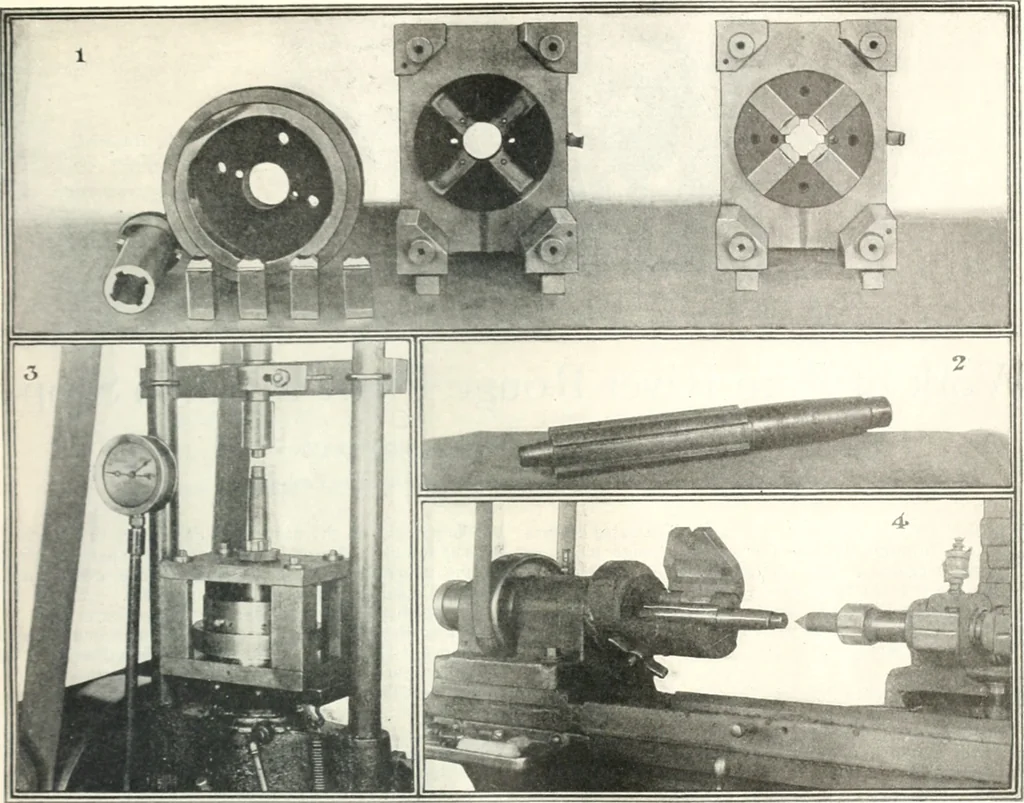

t is entered into a bushing that is lined upwith the die. Then the shaft is pressed throughthe die to a stop that has been set at a sufficient distanceto permit the shaft to pass through to the shaft neck atthe end of the splines, as illustrated by Fig. 3. Thecutters in the die are then released… … 1. Cutters installed in die. 2. Detail view of shaft. 3. Prexsing shaft through die. 4. Re-centering .ihaft bygrinding against pencil-shaped grinding tool minutes was about correct, and it was decided that onepass of the shaft through the die gave the most satis-factory result. Up to this point we…
