Cyclopedia of mechanical engineering; a general reference work. Editor-in-chief Howard Monroe Raymond. Assisted by a corps of mechanical engineers, technical experts, and designers of the highest professional standing (1908)
American School (Chicago, Ill.), Raymond, Howard Monroe · Chicago American Technical Society · leaf 249

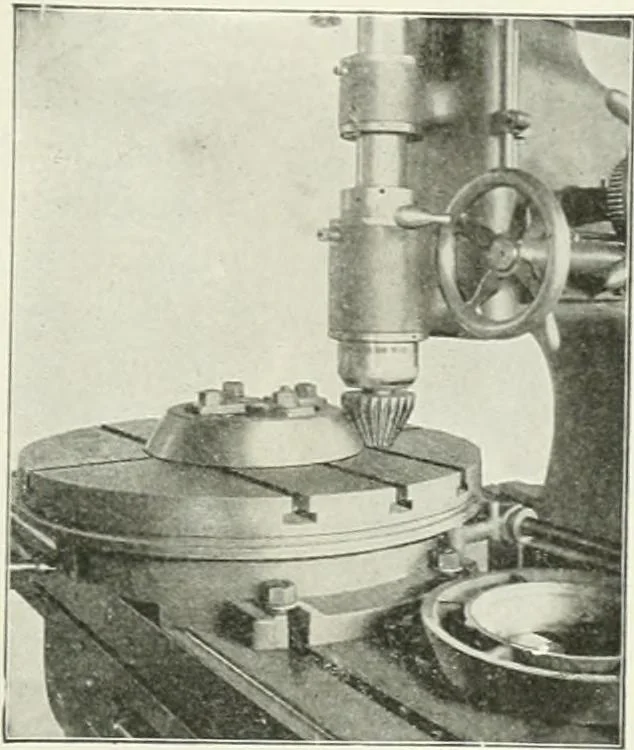

l in the vertical mill-ing machine is strikingly shown in Fig. 7, where one is used infinishing a horizontal plane surface and the vertical segment of anarc, at one operation and in one-tenth of the time required in alathe. An end-and-side mill should as a rule be made with specialflutes; and, if… … and in each case it may be noticed that there are vertical surfacesto be milled, and also horizontal edges to be linisbed. These aretaken care of, first by the use of the end-and-side mill shown stand-ing on the .table in Fio-. 9-and then the angular or dove-tail mill is substituted, atidthe…
Mechanical engineering
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
