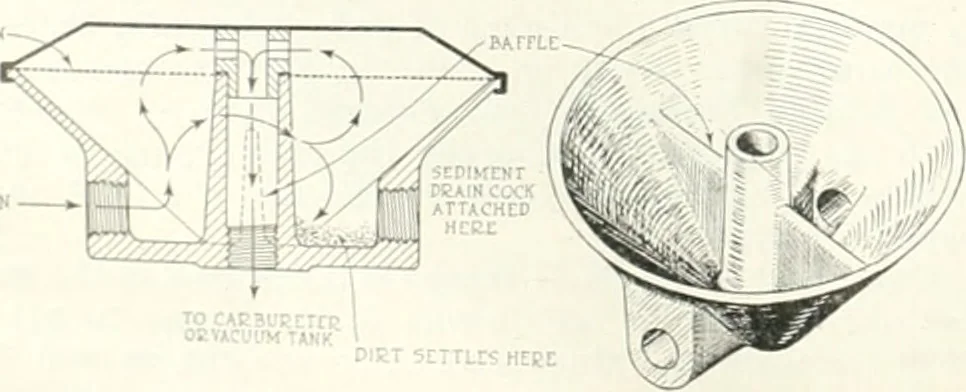

dirt falls beyond thebaffle, while the liquid fuel passes up through thescreen, and down through a central tube to the carbure-tor or vacuum tank. The use of the baffle is importantwhen the filter is used with a vacuum system since thefuel flow reverses momentarily when the vacuum isreleased and… … OC VACUUM I«(K closely woven in layers, quite different from the ordinarywire mesh. The inlet and outlet are tapped with %-Jn.pipe thread and are interchangeable, that is, the filteris right or left hand, as desired. The instructions placed on the top of the filter read:To clean, drain only; to…
