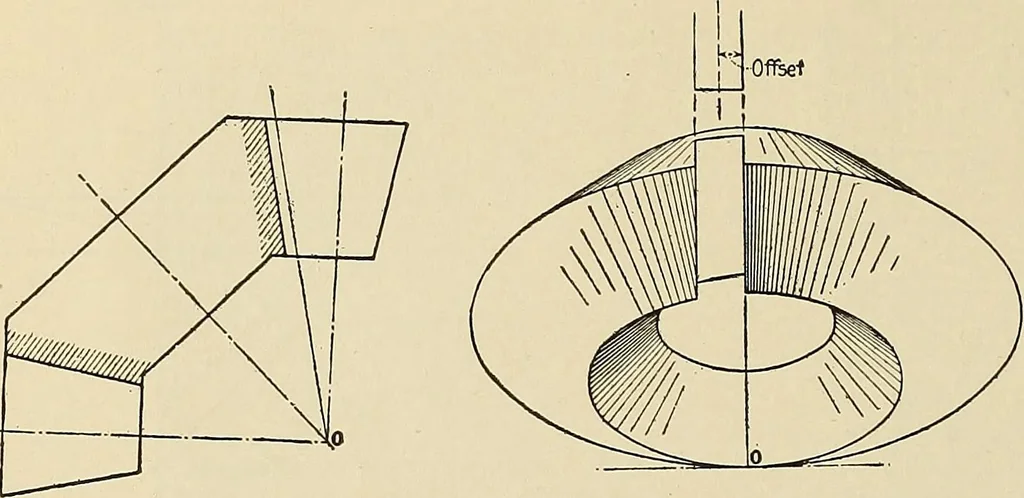

f / and / are to be determined by measuring the thick-ness of the cutter at the outer and inner pitch points with a micro-meter or gear-tooth caliper. These values determined and the offsetcalculated, the cutter is adjusted to the offset and the gear is cutonce around. The cutter is then adjusted… … Offset ..< m. 11 0 Fig. II.Figs, ii and Fig. 12. 12.—Action of a cutter with parallel sides.
