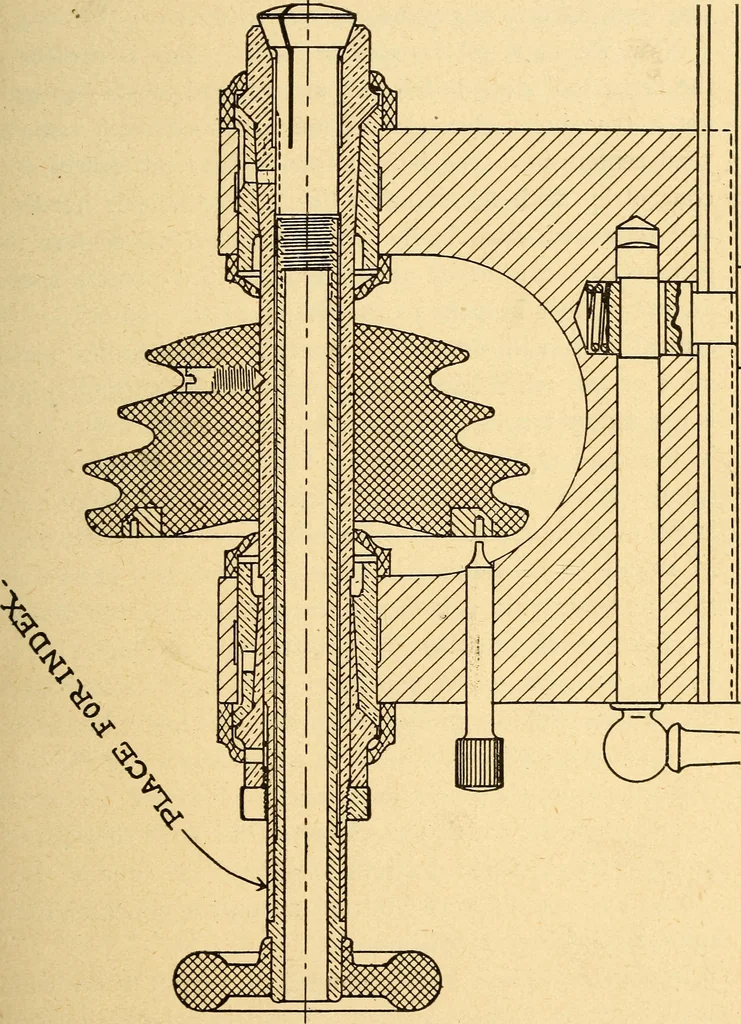

lderstraight. The rear bearing is fitted in the head stock in the reversedirection, and has a similar shape; mounted on the rear ofthe spindle is the rear spindle bearing, shaped like that ofthe front spindle, but adapted to slide on the spindle andbe held in place by a check nut. It will be seen… … Fig. 24. Longitudinal Section of Head Stock of American Lathe.Full Size. 36 THE AMERICAN LATHE. ceptible side or end shake and having the least possible fric-tion. These bearings are of gun metal, or of fine grainedcast iron, hardened, ground and polished. Now we come to the spindle itself. This is…
