Aviation engines; design--construction--operation and repair; (1919)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley publishing co. · leaf 104

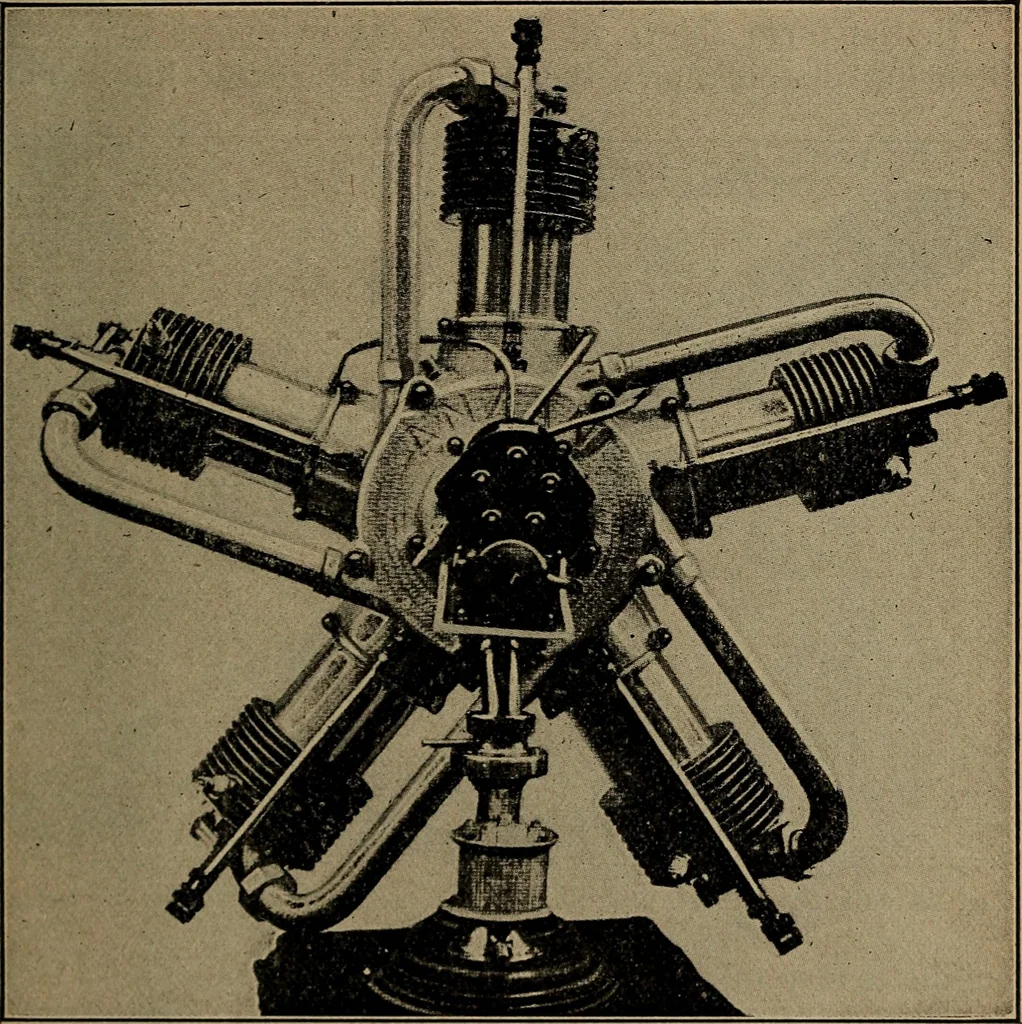

of intermediatebearings and their supporting webs which would be neces-sary with the usual tandem construction. While there aresix power impulses to every two revolutions of the crank- Radial Cylinder Arrangements 105 shaft, in the six-cylinder engine, they are not evenly spacedas is possible with… … Fig. 38.—Anzani 40-50 Horse-Power Five-Cylinder Air Cooled Engine. in number and the engine develops 40 to 50 H. F. with aweight of 72 kilograms or 158.4 lbs. The cylinders are ofthe usual air-cooled form having cooling flanges only partof the way down the cylinder. By using five cylinders itis…
