Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 106

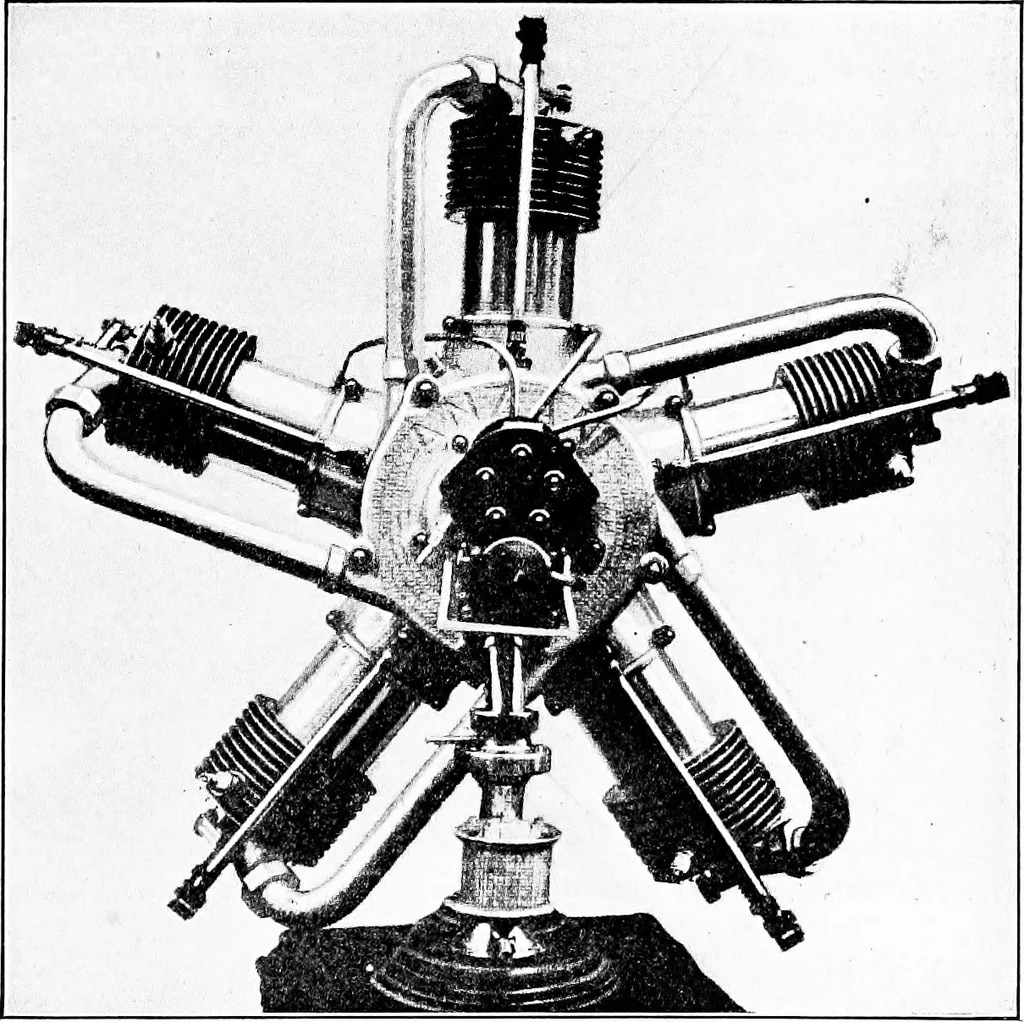

of intermediatebearings and their supporting webs which would be neces-sary with the usual tandem construction. While there aresix power impulses to every two revolutions of the crank- Radial Cylinder Arrangements 105 shaft, in the six-cylinder engine, they are not evenly spacedas is possible with… … Tig. 38.—Anzani 40-50 Horse-Power Five-Cylinder Air Cooled Engine. in number and the engine develops 40 to 50 H. P. with aweight of 72 kilograms or 158.4 lbs. The cylinders are ofthe usual air-cooled form having cooling flanges only partof the way down the cylinder. By using five cylinders itis…
Airplanes
