An illustration from Twentieth century hand-book for steam engineers and electricians with questions and answers; a practical non-technical treatise .., 1913, leaf 798

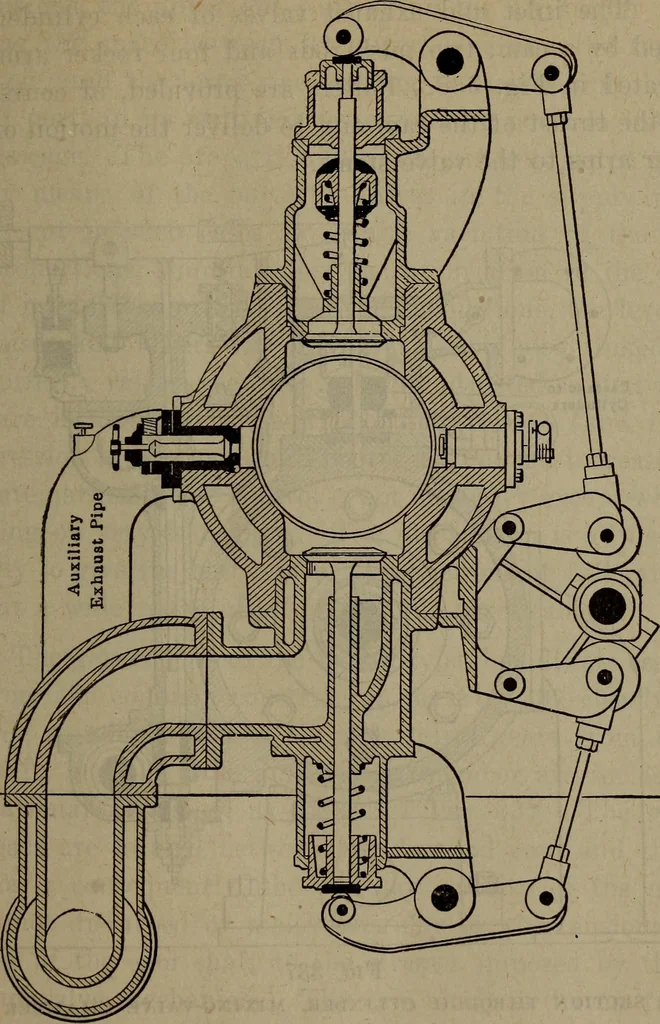

d pin are all cast in one piece of steel; thebalancing weights are bolted on. Valves, Valve Gear and Governor,—^^Simple, flat poppetvalves of forged steel, with beveled seats, are used through-out the engine, and the need for cooling the exhaust valvesin larger sizes ^is obviated by the use of… … Fig. 336cross section through cylinder and valve chambers, du bois gas engine cylinder barrel, and they are drilled, instead of being cored,in order to obtain absolute accuracy in dimension and loca- 784 Steam Engineering tion. The inlet and exhanst valves of each cylinder areopened by a cani^, two…
