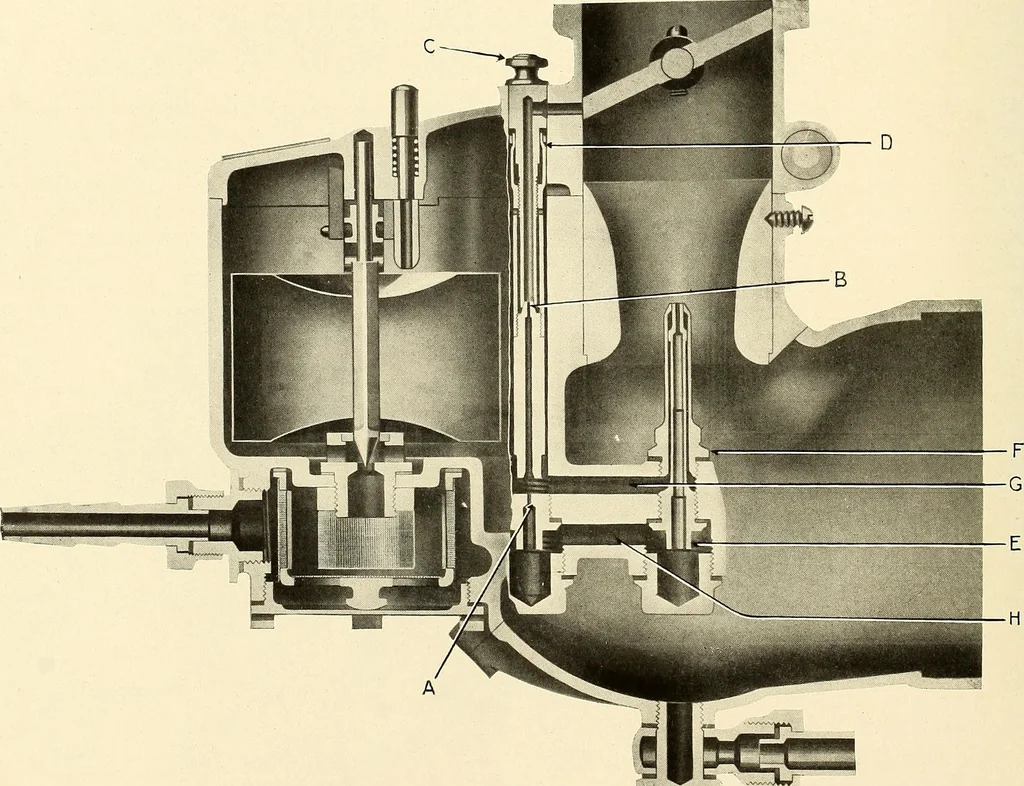

with the fuel, so that at high speeds the outertube of the main nozzle supplies part gasoline and partbubbles of air, the latter being of great assistance in break-ing up the fuel into a fine spray. Mixture Control The flow of fuel through the main nozzle is, of course,caused by suction, which is… … Section of Zenith D. C. 48 carburetor. A is the compensating plug. C is the idling jet, which is adjustable atpoints B and D. E and F are inner and outer members of main nozzle. G is the gasoline passage used for idling andacceleration, and H the main supply channel. This section is diagrammatic…
