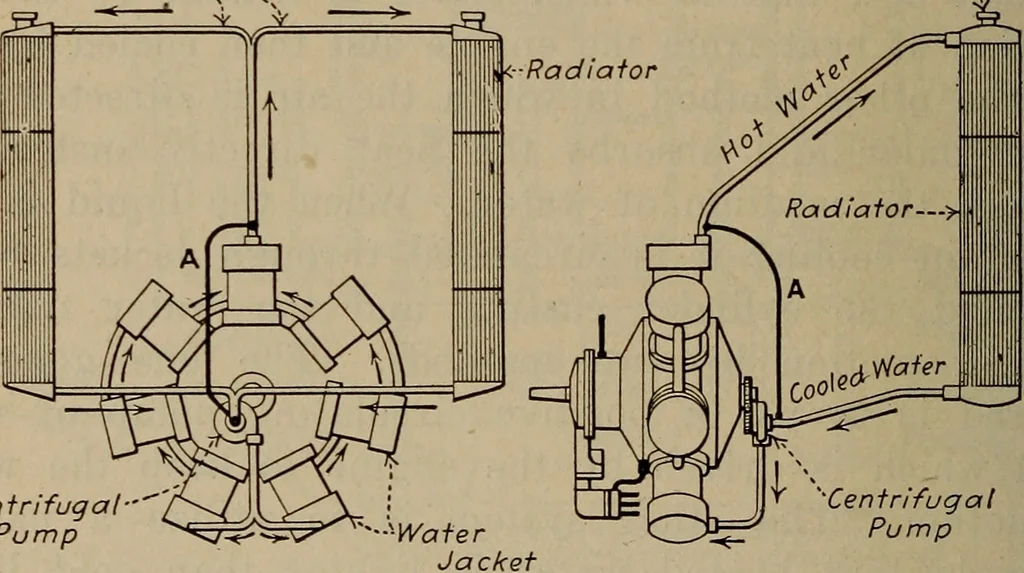

cylinder walls by some form of jacket which confines itto the heated portions of the cylinder. COOLING BY POSITIVE WATER CIRCULATION A typical water-cooling system in which a pump isdepended upon to promote circulation of the coolingliquid is shown at Figs. 82 and 83. The radiator is car-ried at… … Centrifugal-Pump CentrifugalPump Fig. 82.—Water Cooling of Salmson Seven-Cylinder Radial Airplane Engine. 84, or attached to the central portion of the aerofoil orwing structure. It is composed of an upper and lowerportion joined together by a series of pipes which maybe round and provided with a…
