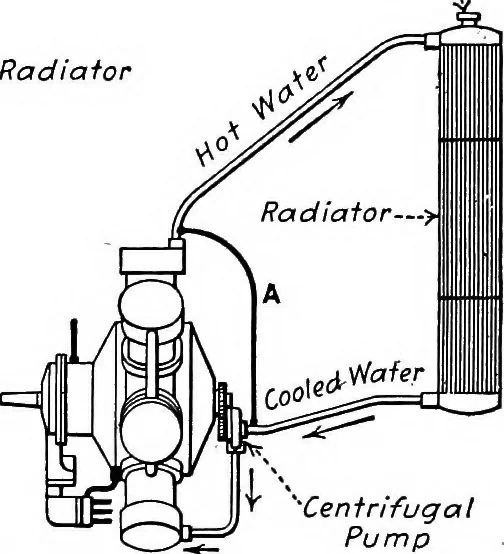

2a (^■Radiator T^-~-*-\s ■■Water Jacket … CentrifugalPump Fig. 82.—Water Cooling of Salmson Seven-Cylinder Radial Airplane Engine. 84, or attached to the central portion of the aerofoil orwing structure. It is composed of an upper and lowerportion joined together by a series of pipes which maybe round and provided with a series of fins to…
