Aviation engines; design--construction--operation and repair; (1919)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley publishing co. · leaf 250

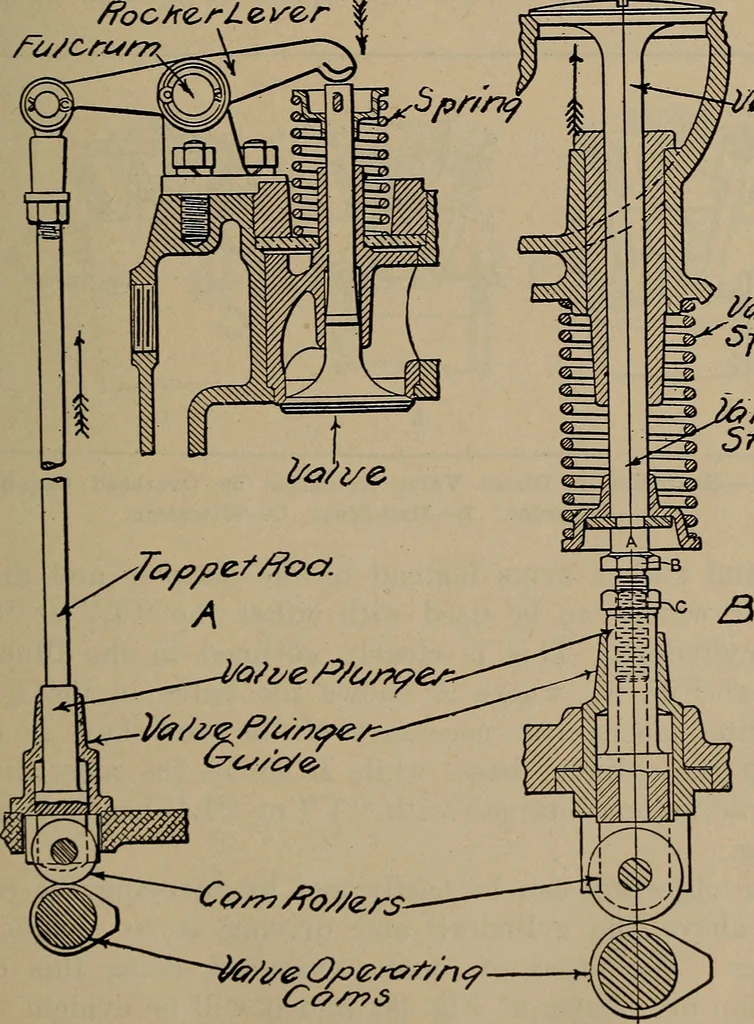

ngine shown at Fig. 93. Valve Location Practice 251 At Fig. 94, A and B, a section through a typical L-shaped cylinder is depicted. It will be evident that wherea pocket constrnction is employed, in addition to its fac-ulty for absorbing heat, the passage of gas would beimpeded. For example, the… … fa/ve Fig. 95.—Conventional Methods of Operating Internal Combustion Motor Valves. 252 Aviation Engines and then at another sharp angle to fill the cylinders. Thesame conditions apply to the exhanst gases, though theyare reversed. When the valve-in-the-head type of cylin-der is employed, as at C,…
Airplanes
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
