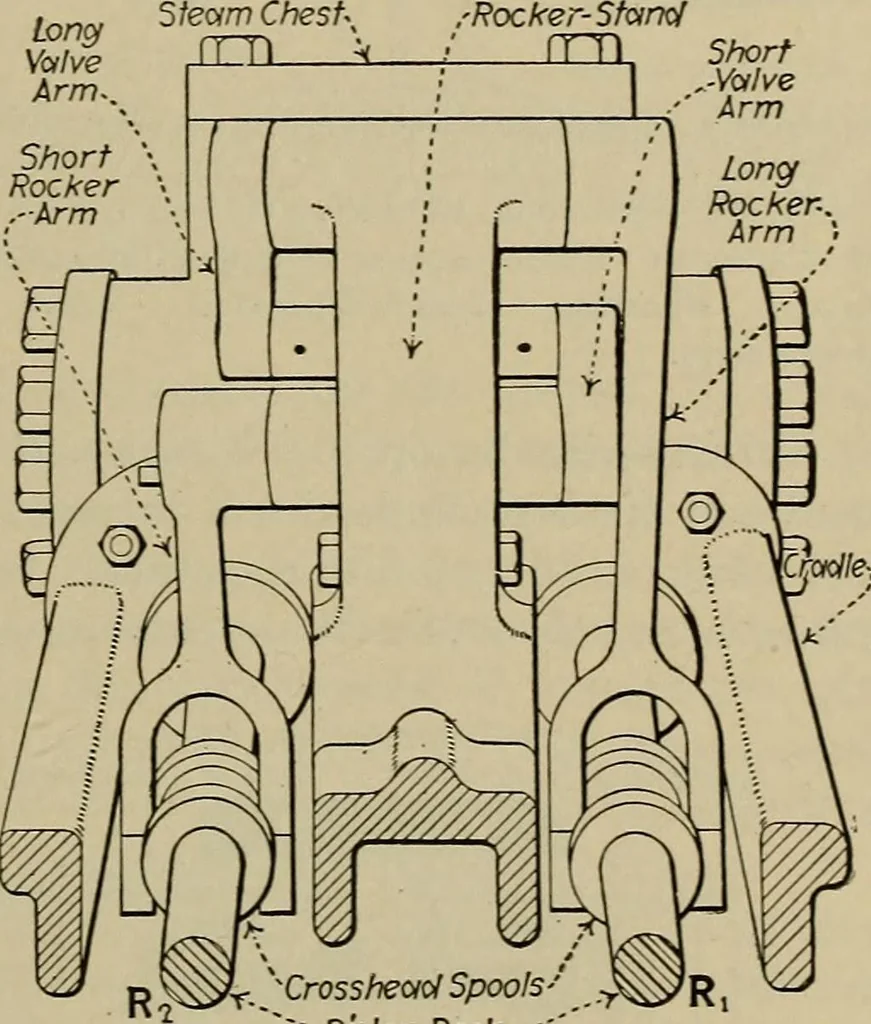

67. The Steam-Valve Gears OfSimplex-Pumps are (Figs. 62 and66) variously constructed. Withall forms of such gears, however,the main valve for admitting steamto the cylinder and releasing ittherefrom, is operated by directsteam-pressure. The valve is thussaid to be steam-thrown. Rocker-Sfantf … Fig. 64.—Sectional Elevation OfOne Side Of Vertical Duplex SteamPump For Boiler Feed Service. -Phton-Rools-- Fig. 65.—End-View Of Steam-Valve-Actuat-ing-Mechanism Of Duplex Pump. Explanation.—At the beginning of the inboard stroke (Fig. 62),main steam-port E is covered by the piston, P. Enough…
