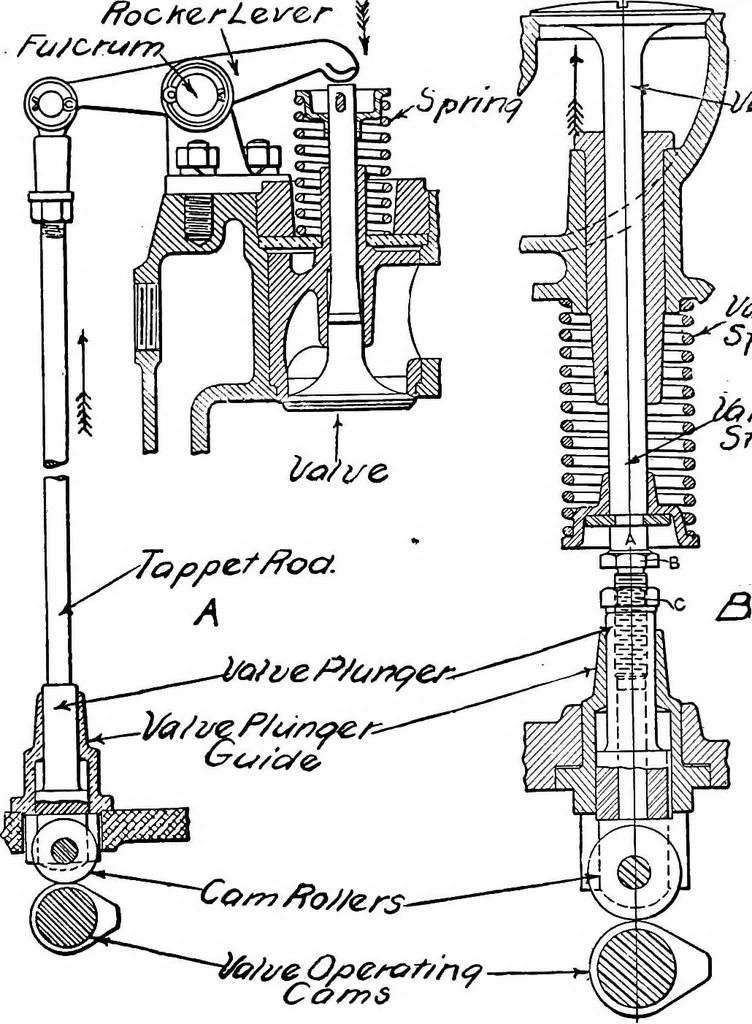

own at Fig. 93. Valve Location Practice 251 At Fig. 94, A and B, a section through a typical L-shaped cylinder is depicted. It will be evident that wherea pocket construction is employed, in addition to its fac-ulty for absorbing heat, the passage of gas would beimpeded. For example, the inlet gas… … Vp/i/e Fig. 95.—Conventional Methods of Operating Internal Combustion Motor Valves. 252 Aviation Engines and then at another sharp angle to fill the cylinders. Thesame conditions apply to. the exhaust gases,- though theyare reversed. When the yalve-in-the-head type of cylin-der is employed, as at…
