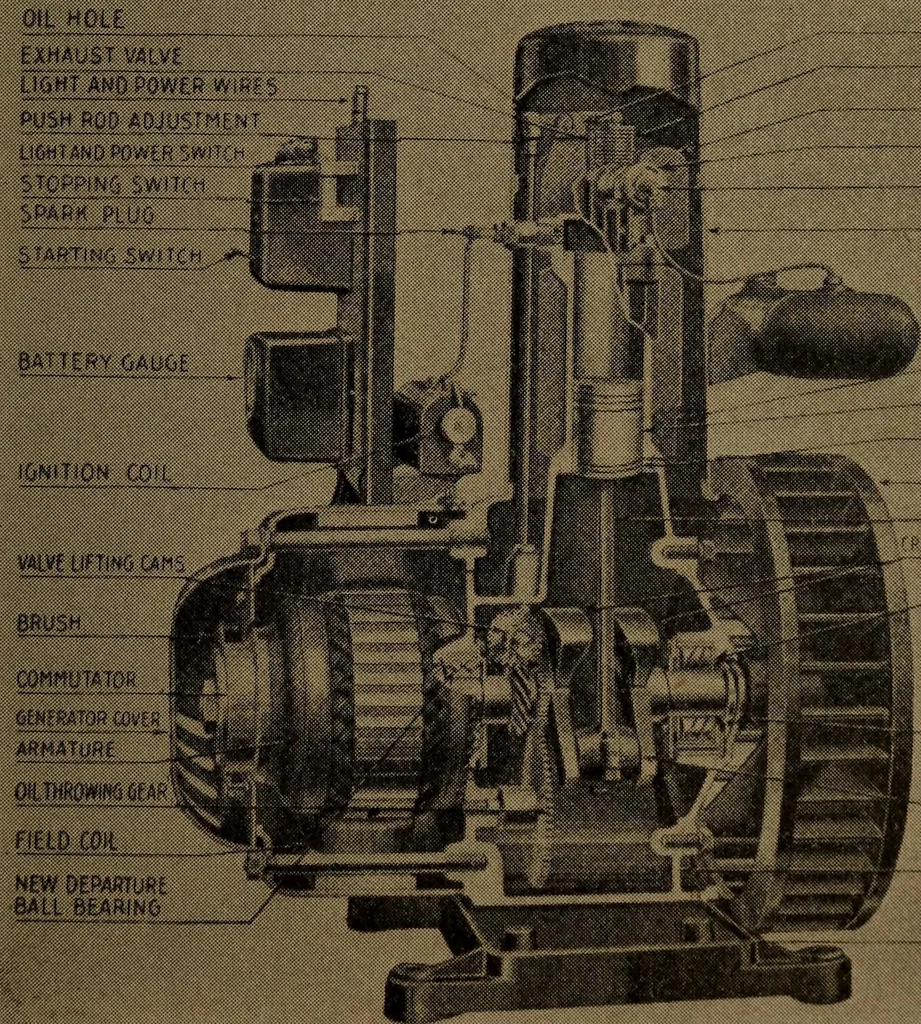

armature is attached to the crankshaft of the engineby which it is rotated in a magnetic field to produce the desiredamount of electricity. The brushes, in contact with the com-mutator, conduct the electricity as it is generated in the armature,which after passing through the switchboard is made… … ■iiiiiiiii E lliiii|iiii iiiiiiiiiiiii %, -; %. Wiliiiii ^ liiiiiiiiiiH ^liiBiiiiiiiiii Fig. 260.—Details of motor, electric generator and switchboard. Referring to the switchboard of Fig. 259, the three switchesand the ammeter comprise the necessary accessories. The start-ing switch is so arranged…
