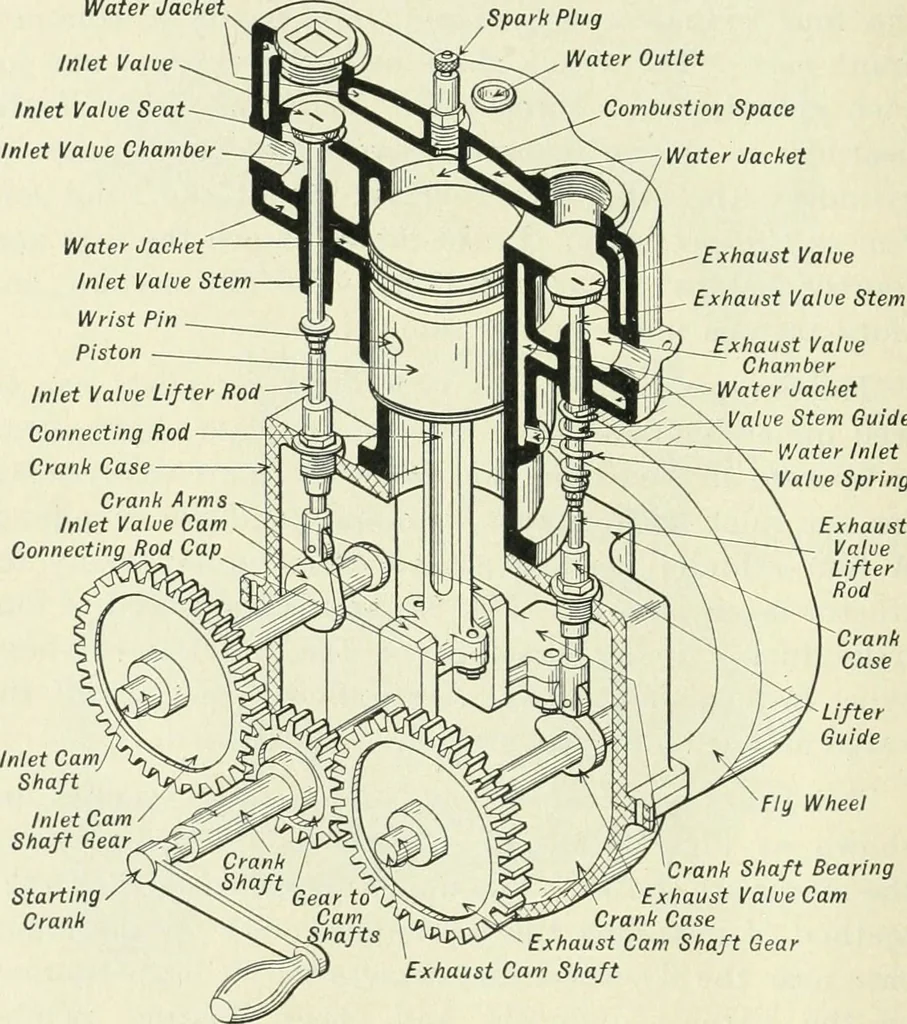

method ofsecuring inlet and exhaust manifolds and the locationof the valves in pockets at the side of the L-shapedindividual cylinder castings. Water Jacket Inlet ValveInlet Value SeatInlet Valve Chamber Water JacketInlet Valve StemWrist PinPiston Inlet Value Lifter RodConnecting RodCrank Case… … Fly Wheel Crank Shaft BearingExhaust Valve CamCrank Case• Exhaust Cam Shaft GearExhaust Cam Shaft Fig. 38.—Single Cylinder Four-Cycle Motor With One Halfof Cylinder and Crankcase Removed to Show All Im-portant Parts. CHAPTER IV.GAS TRACTOR POWER PLANT COMPONENTS. Parts of Tractor Engines and Their…
