Mechanical drawing; a treatise on the drawing of mechanical and machine details (1920)
Jones, Franklin Day, 1879-1967 · New York, The Industrial press; [etc., etc.] · leaf 131

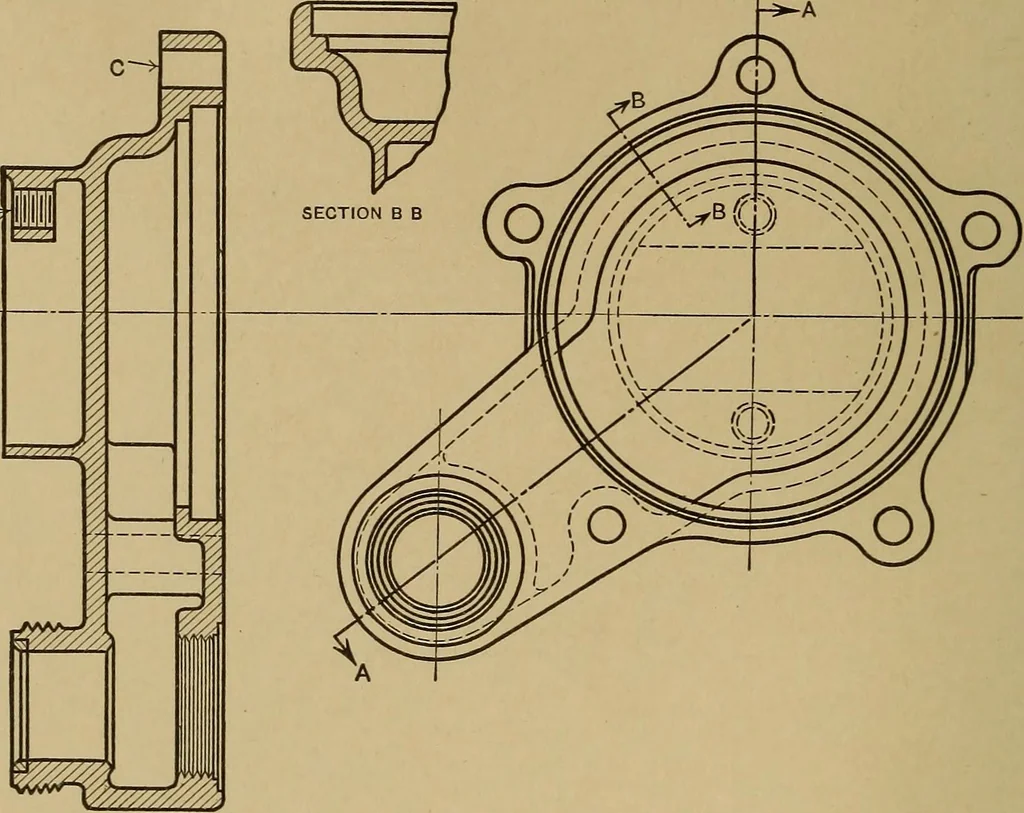

Case illustrating howPosition of Sectional View is indicated n8 MECHANICAL DRAWING coincide with the center line; but sometimes the cutting planeis assumed to pass through the part to a certain point andthen change its direction. An example is shown in Fig. 25.The view at the left, marked Section… … Machinery Fig. 25. Sectional View representing more than One Cutting Plane and then continues at an angle through the extension pro-jecting from the lower left-hand side. The advantage ofmaking the drawing this way is that the important featuresare clearly shown in one sectional view. For instance,…
Mechanical drawing
