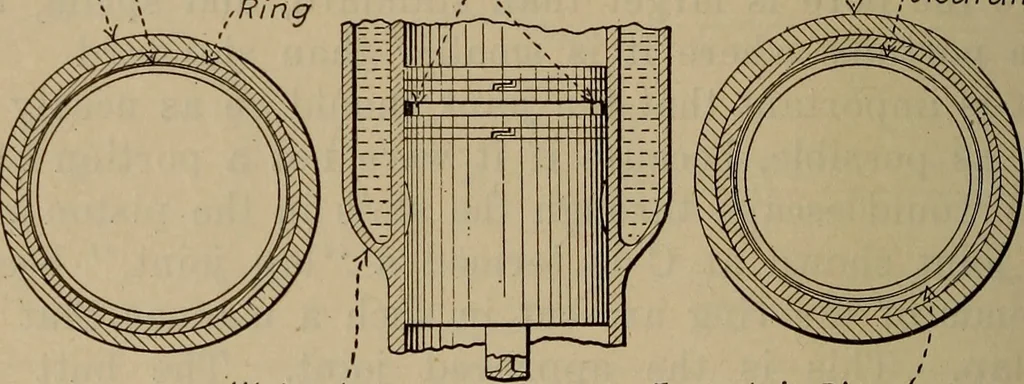

and carbon deposits. The gasket effect of this ring isuniform throughout the entire length of its edges, whichis its marked advantage over the eccentric ring. Thistype of piston ring rarely burns fast in its groove. Thereare a large number of different concentric rings manu-factured of different… … Watery Jacket Eccentric Ring- c Fig. 124.—Diagrams Showing Advantages of Concentric Piston Rings. space between the thin ends of this ring and the bottomof the groove. This empty space fills up with oil whichin the case of the upper ring frequently is carbonized,restricting the action of the ring…
