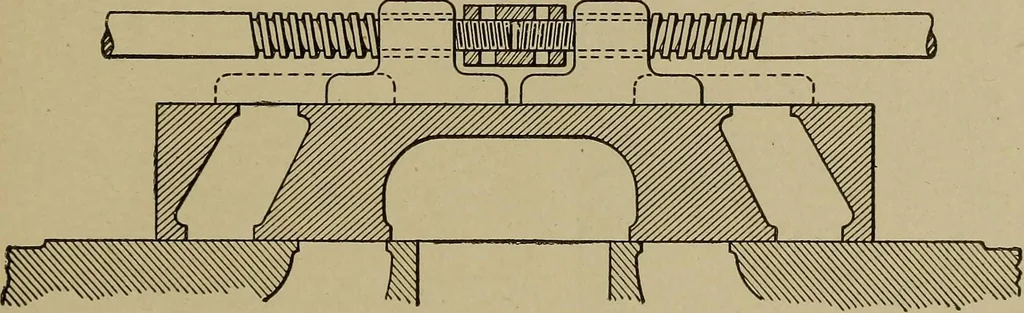

r.. V- 2 Eccentric rod. . . 4-6 Crosshead arm 1- 0 Linkarc l-lO Stroke 2- 0 DOUBLE VALVE GEARS It has been shown that a plain slide valve under the control ofa gear, that gives a variable cut-off, such as a shifting eccentric or alink motion, will not give a satisfactory distribution of steam at… … Fig. 67. Section of Meyer Double Valve The main valve controls admission, release, and compression; theother, called the cut-off valve, regulates the cut-off only, which maybe changed without in any way affecting the other events of thestroke. This cut-off valve, sometimes known as the riding…
